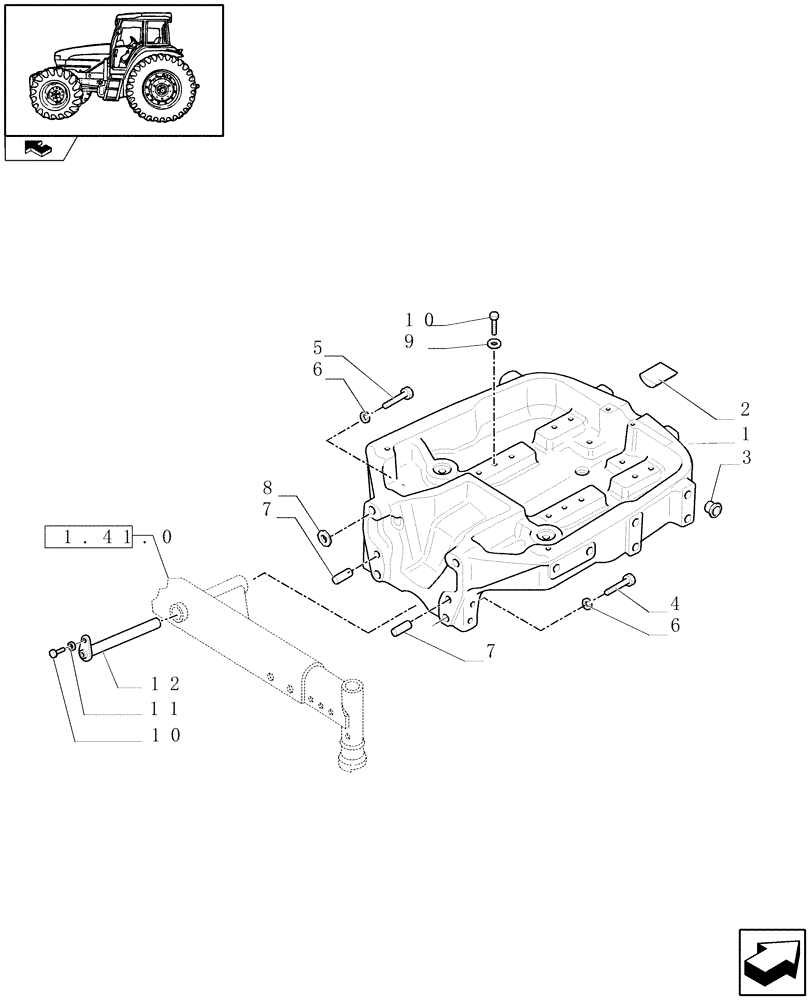

Запчасти Case IH FARMALL 95U (1.21.1/01) - 2WD FRONT AXLE - AXLE FASTENING FRONT SUPPORT (VAR.330403) (03) - TRANSMISSION

1

87557589

SUPPORT

1шт.

2

5176989

PLUG

1шт.

3

5171790

PLUG,18mm, Black

D=18

16шт.

4

15989134

BOLT,Hex, M20 x 1.5 x 100mm, Cl 10.9

2шт.

5

15989534

SCREW,Hex, M20 x 1.5 x 120mm

M20 x 120

2шт.

6

11191879

BELLEVILLE WASHER,Belleville, 20mm ID x 38mm OD x 5.2mm Thk

D = 20

4шт.

7

4668595

DOWEL,18mm OD x 22mm L

18 x 22

2шт.

8

47128135

SHIM,21mm ID x 40mm OD x 1.8mm Thk, Yellow

Yellow

2шт.

8

47128136

SHIM,21mm ID x 40mm OD x 2.0mm Thk, Red

Red

1шт.

8

47128137

SHIM,21mm ID x 40mm OD x 2.2mm Thk, Green

Green

1шт.

8

47128138

SHIM,21mm ID x 40mm OD x 2.4mm Thk, Blue

Blue

1шт.

8

47136468

SHIM,21mm ID x 40mm OD x 1.6mm Thk, Black

Black

1шт.

9

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

For Electrical Ground

1шт.

10

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

3шт.

11

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

1шт.

12

5110400

PIVOT PIN,400mm L

1шт.
