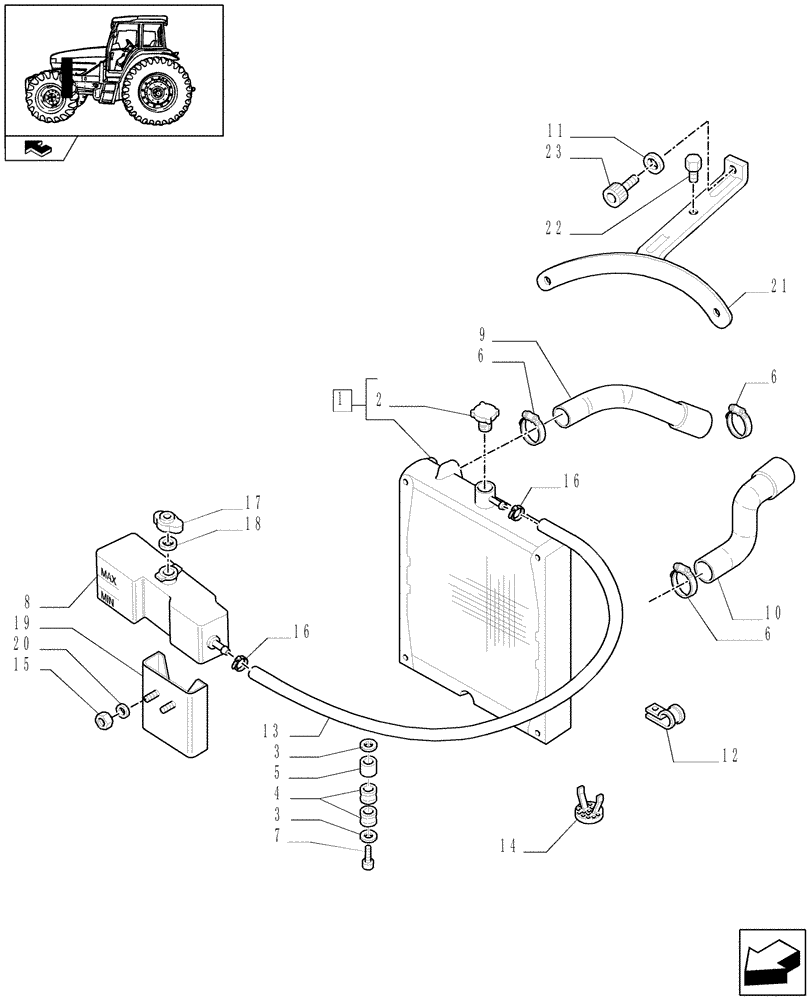

Запчасти Case IH FARMALL 95U (1.17.0) - RADIATOR AND COOLING TANK (02) - ENGINE EQUIPMENT

1

87335352

RADIATOR

1шт.

2

87558952

PLUG

1шт.

3

5102702

WASHER,10.5mm ID x 45mm OD x 3mm Thk

4шт.

4

5108225

RUBBER MOUNTING

4шт.

5

5102703

SPACER,11mm ID x 15mm OD x 63mm L

2шт.

6

87374233

COLLAR CLAMP,40 - 60mm

40-60

4шт.

7

15971624

SCREW,Hex, M10 x 1.25 x 90mm, Cl 8.8

2шт.

8

5176648

TANK

1шт.

9

87337412

HOSE

Inlet Water

1шт.

10

87337413

HOSE

Outlet Water

1шт.

11

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

1шт.

12

5158379

CLAMP

1шт.

13

82849374

HOSE,7mm ID x 1700mm L

1шт.

14

5120218

GRILLE

1шт.

15

16100810

NUT,M8, Cl 8

2шт.

16

13000190

HOSE CLAMP,M10-16

2шт.

17

4274034

CAP

1шт.

18

4153008

SEAL

SEALRING

1шт.

19

87742061

BRACKET

1шт.

20

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

8 x 16 x 1.4

2шт.

21

87561385

BRACKET

1шт.

22

15697804

SELF-TAP SCREW,Hex Wshr Hd, M6 x 20mm

1шт.

23

16043824

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd, DAC

1шт.
