Запчасти Case IH FARMALL 95U (1.15.1/01[02]) - EXHAUST ASPIRATED DRY AIR CLEANER - MUFFLER - L/CAB (VAR.331199) (02) - ENGINE EQUIPMENT

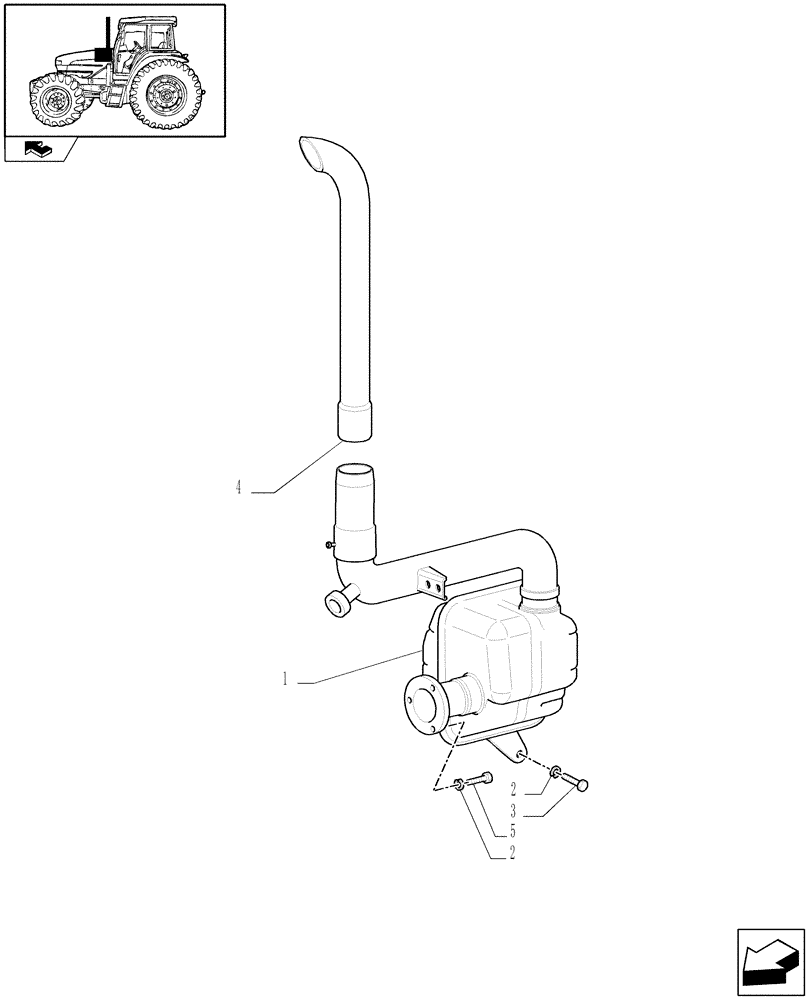

Схема запчастей Case IH FARMALL 95U - (1.15.1/01[02]) - EXHAUST ASPIRATED DRY AIR CLEANER - MUFFLER - L/CAB (VAR.331199) (02) - ENGINE EQUIPMENT
3
4
5
2
home
2
1

Артикул

Название

Примечание

Количество

1

87348756

MUFFLER

1шт.

2

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

7шт.

3

16043324

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

3шт.

4

5173644

EXHAUST SYSTEM PIPE

1шт.

5

16043824

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd, DAC

4шт.

Выбрано товаров: 5
