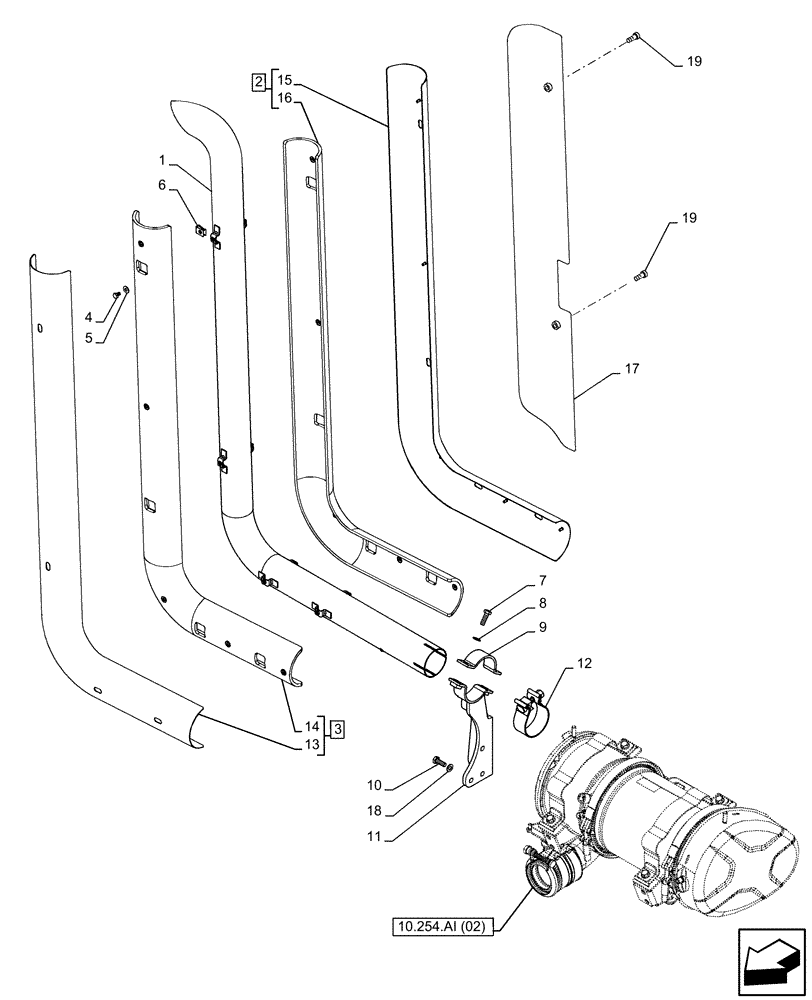

Запчасти Case IH FARMALL 95C (10.254.AD[03]) - VAR - 743545 - EXHAUST SYSTEM PIPE, VERTICAL, CAB (10) - ENGINE

1

47472803

UNLOADING TUBE

1шт.

2

84341828

HEAT SHIELD

ASSY, Incl 15, 16

1шт.

3

84342031

HEAT SHIELD

ASSY, Incl 13,14

1шт.

4

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

6шт.

5

11194674

BELLEVILLE WASHER,M6 Bolt Size x 15mm OD x 1mm Thk

8шт.

6

14189071

SPRING NUT,M6

8шт.

7

16043621

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

8

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

9

47128424

COLLAR

1шт.

10

16043524

SCREW,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

3шт.

11

84551446

BRACKET

1шт.

12

84499086

CLAMP,64.9mm

1шт.

13

84255893

PROTECTION PLATE

1шт.

14

NSS

NOT SOLD SEPARAT

Heat Shield, Incl in 3

1шт.

15

NSS

NOT SOLD SEPARAT

Heat Shield, Incl in 2

1шт.

16

84255894

PROTECTION PLATE

1шт.

17

47433509

HEAT SHIELD

1шт.

18

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

3шт.

19

10902424

SCREW,Hex, M6 x 20mm, Cl 8.8, Full Thd

2шт.
