Запчасти Case IH FARMALL 95C (90.156.AE[01]) - VAR - 391606, 743496 - WINDOW, REAR, GAS STRUT, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

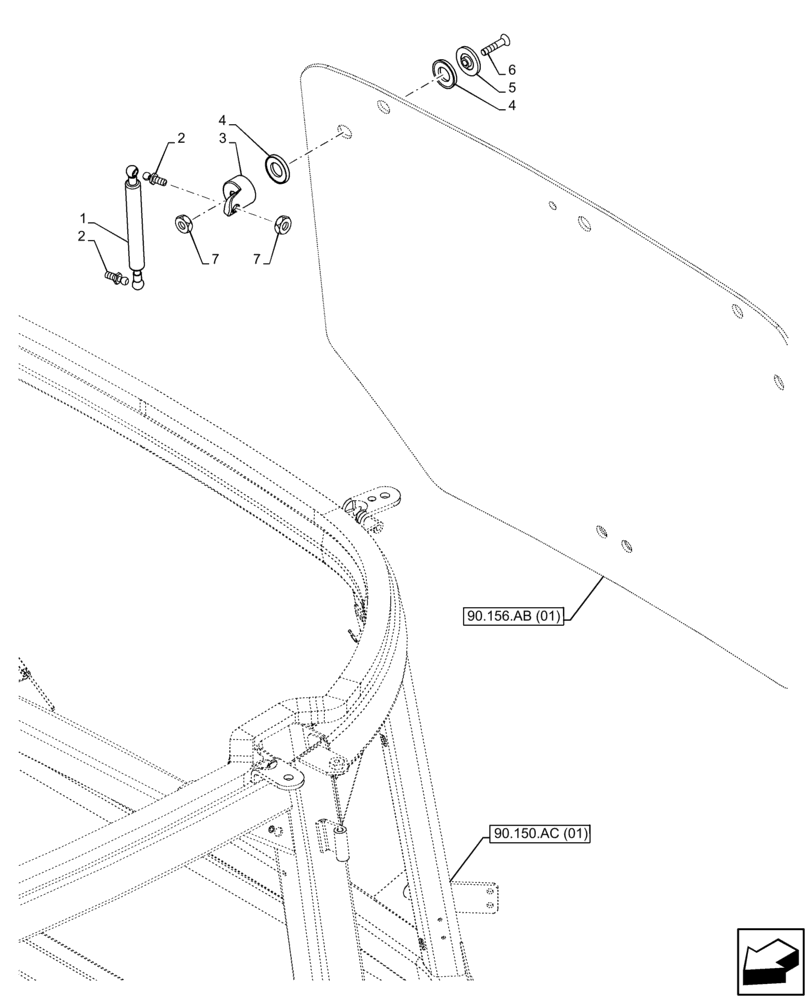

Схема запчастей Case IH FARMALL 95C - (90.156.AE[01]) - VAR - 391606, 743496 - WINDOW, REAR, GAS STRUT, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
5
4
90.150.ac (01)
6
90.156.ab (01)
4
7
2
3
2
1
7

Артикул

Название

Примечание

Количество

1

84280589

GAS STRUT

2шт.

2

44910148

BALL STUD,M8 x 1.25

4шт.

3

44910149

ARTICULATION

2шт.

4

44910151

GASKET,15mm ID x 39mm OD x 4.5mm Thk

4шт.

5

44910150

SEALING WASHER,8.5mm ID x 39mm OD x 13mm Thk

2шт.

6

13304117

SCREW,Pozidriv Flat Hd, Csk, M8 x 40mm, Cl 5.8

2шт.

7

16104414

LOCK NUT,M8 x 1.25

4шт.

Выбрано товаров: 7
