Запчасти Case IH FARMALL 95C (90.151.AC[02]) - VAR - 334180, 334183, 744588 - PASSENGER SEAT, COMPONENTS, CAB - END YR 12-SET-2013 (90) - PLATFORM, CAB, BODYWORK AND DECALS

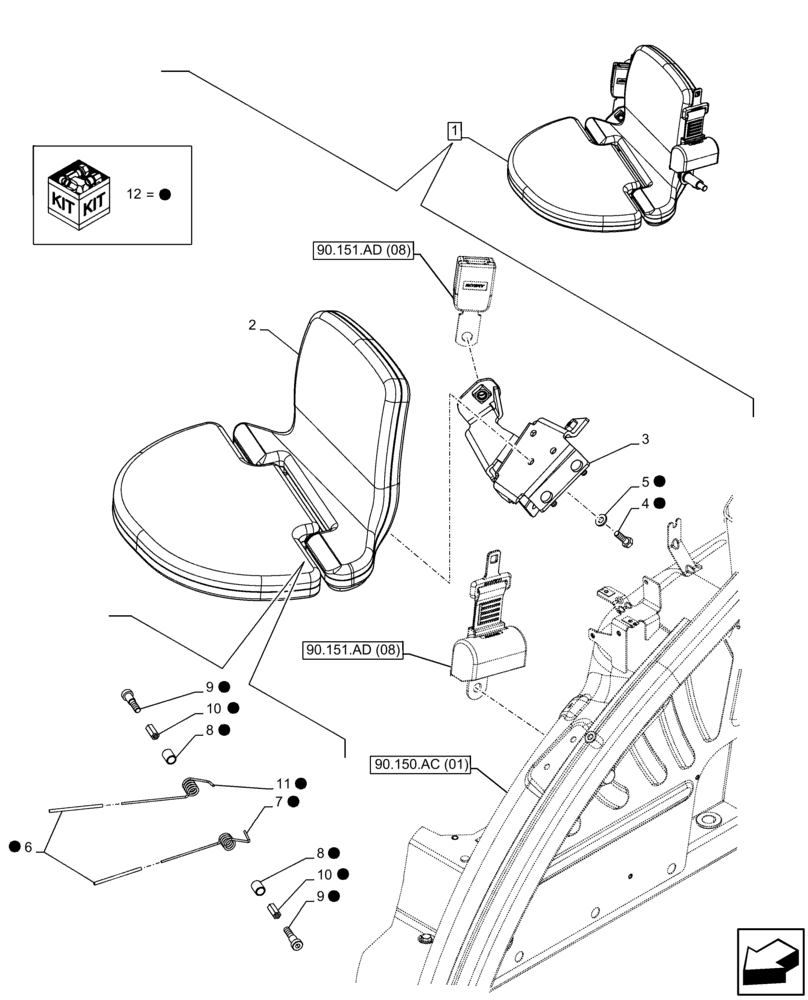

Схема запчастей Case IH FARMALL 95C - (90.151.AC[02]) - VAR - 334180, 334183, 744588 - PASSENGER SEAT, COMPONENTS, CAB - END YR 12-SET-2013 (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
11
10
12
12
12
5
90.151.ad (08)
12
12
6
12
12
1
7
9
9
4
90.150.ac (01)
8
12
12
2
10
90.151.ad (08)
12
12
12
8

Артикул

Название

Примечание

Количество

1

84281902

INSTRUCTIONAL SEAT

ASSY, Fabric, Wheat, Incl 2 - 12

1шт.

2

NSS

NOT SOLD SEPARAT

Cushion, Incl in 1

1шт.

3

84295299

BRACKET

1шт.

4

84467669

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

M8 x 1.25 x 25mm

3шт.

5

84467674

WASHER,8.4mm ID x 17.5mm OD x 2.5mm Thk

8.4mm x 17.5mm x 2mm

3шт.

6

84412870

SLEEVE

2шт.

7

84412864

SPRING

LH

1шт.

8

84412873

BUSHING

2шт.

9

84412857

HEX SOC SCREW,Hex, M8 x 1.25 x 37mm

M8 x 1.25 x 37mm

2шт.

10

84412869

PROFILE,M8 x 1.25

M8 x 1.25mm

2шт.

11

84412859

SPRING

RH

1шт.

12

84470865

KIT

Hardware for Instructional Seat, Incl 4 - 11

1шт.

Выбрано товаров: 12
