Запчасти Case IH FARMALL 95C (90.150.BG[02]) - VAR - 334180, 334183, 334211, 743496 - CAB ROOF, W/HIGH VISIBILITY PANEL (90) - PLATFORM, CAB, BODYWORK AND DECALS

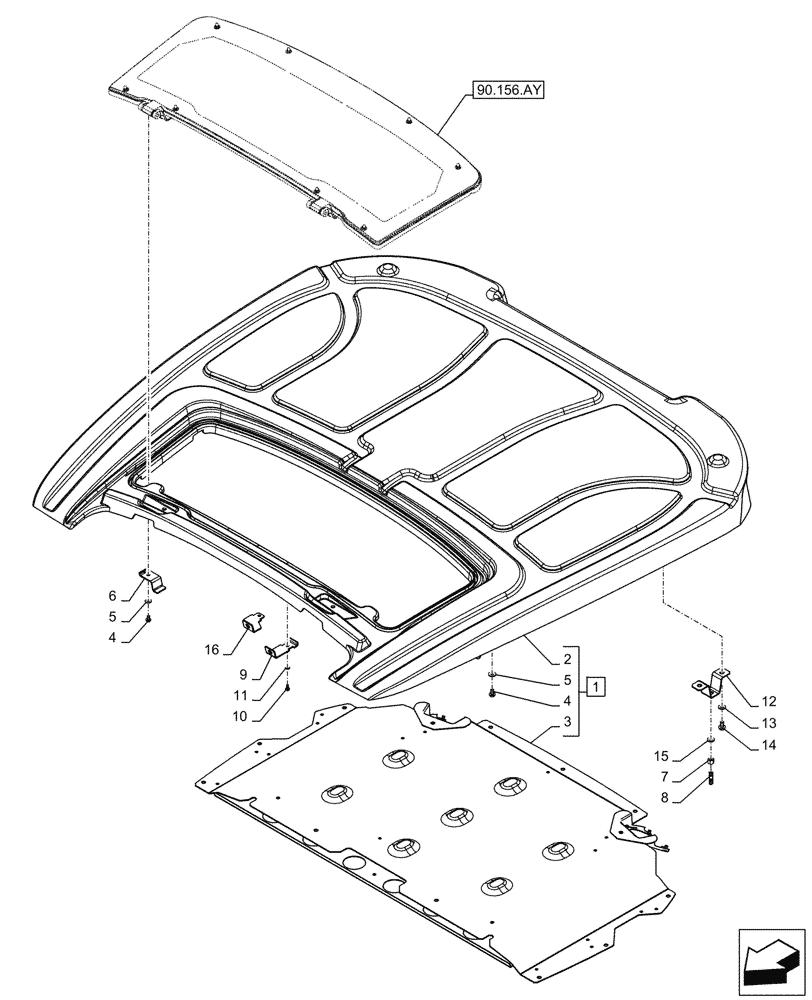

Схема запчастей Case IH FARMALL 95C - (90.150.BG[02]) - VAR - 334180, 334183, 334211, 743496 - CAB ROOF, W/HIGH VISIBILITY PANEL (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.156.ay
10
16
13
7
5
9
4
1
5
2
8
12
3
14
15
11
6
4

Артикул

Название

Примечание

Количество

1

47449214

ROOF

ASSY, Red, Incl 2, 3, 4 (Qty 11), 5 (Qty 11)

1шт.

2

NSS

NOT SOLD SEPARAT

Roof, Incl in 1

1шт.

3

47411515

STEEL PLATE

1шт.

4

84187816

SCREW,Torx Pan Hd, M6 x 12mm, Cl 8.8, POL

13шт.

5

12646601

WASHER,6.15mm ID x 15mm OD x 1.5mm Thk

13шт.

6

84319350

BRACKET

2шт.

7

16104114

LOCK NUT,M8, Cl 8

M8 Cl 8 DAC

4шт.

8

13516924

STUD,M8 x 34mm L, Cl. 8.8

M8 x 12 x 22 Cl 8.8 DAC

6шт.

9

47398004

BRACKET

, Years: -21-JAN-14

1шт.

10

84193286

SCREW,Torx Pan Hd, M4 x 10mm, Cl 4.8

1шт.

11

11181474

BELLEVILLE WASHER,M4 Bolt Size x 9mm OD x 0.7mm Thk

1шт.

12

84317195

BRACKET

2шт.

13

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

4шт.

14

84187810

SCREW,Torx Pan Hd, M8 x 16mm, Cl 8.8

6шт.

15

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

16

47613002

BRACKET

, Start Year: 22-JAN-14

1шт.

Выбрано товаров: 16
