Запчасти Case IH FARMALL 95C (90.124.AK[01]) - VAR - 331850 - DRIVER SEAT (W/ ARMREST), SUSPENSION, SHOCK ABSORBER, AIR COMPRESSOR, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

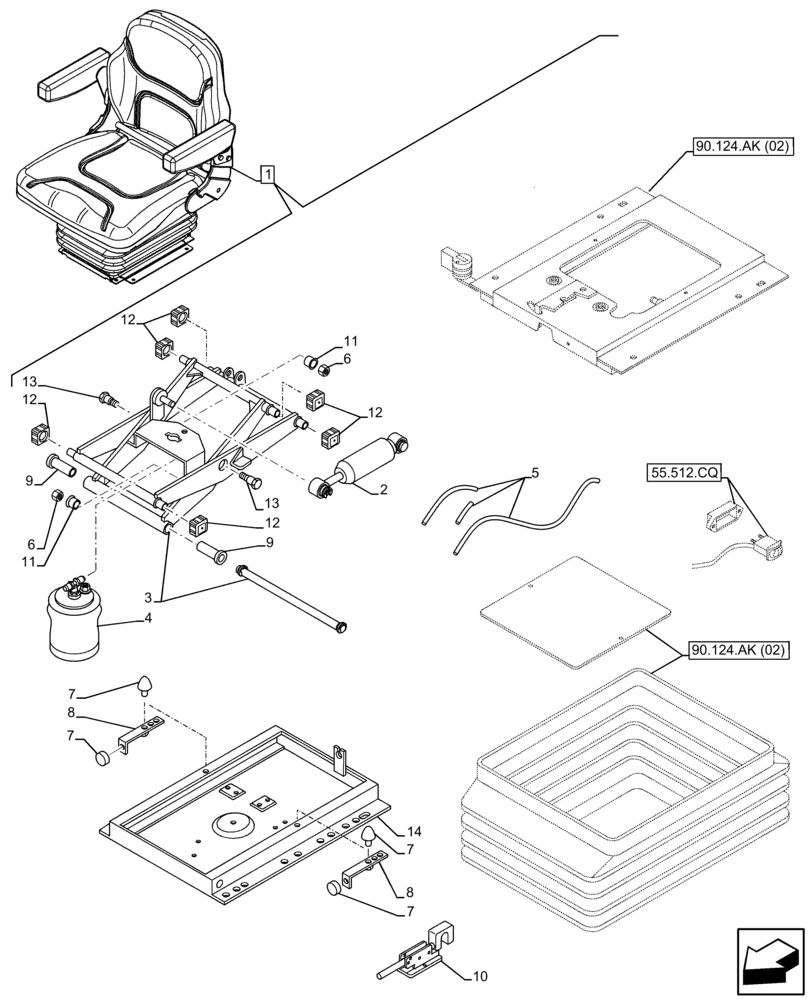

Схема запчастей Case IH FARMALL 95C - (90.124.AK[01]) - VAR - 331850 - DRIVER SEAT (W/ ARMREST), SUSPENSION, SHOCK ABSORBER, AIR COMPRESSOR, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
1
7
9
3
6
9
12
7
90.124.ak (02)
90.124.ak (02)
7
8
10
8
7
6
55.512.cq
12
13
12
14
2
11
4
12
5
13
11

Артикул

Название

Примечание

Количество

1

84301433

DRIVER SEAT

ASSY, Fabric, Wheat, Incl 2 - 14

1шт.

Air Suspension, W/ Safety Switch, W/ Armrest

1шт.

See Driver Seat Components also in Section, Subsection 55.512, 90.124, 90. 151

1шт.

2

47438693

KIT

Shock Absorber

1шт.

3

47438704

KIT

Scissor

1шт.

4

47438732

KIT

Air Compressor & Hardware

1шт.

5

47438735

KIT

Air Compressor Hoses

1шт.

6

NSS

NOT SOLD SEPARAT

Nut, Incl in 1

1шт.

7

47439001

KIT

Rubber Boom Stop

1шт.

8

47439005

KIT

Bump Stop Bracket

1шт.

9

NSS

NOT SOLD SEPARAT

Bushing, Incl in 1

1шт.

10

47439009

KIT

Operator Presence Switch

1шт.

11

NSS

NOT SOLD SEPARAT

Bushing, Incl in 1

1шт.

12

47438649

KIT

Scissor Roller

1шт.

13

NSS

NOT SOLD SEPARAT

Screw, Incl in 1

1шт.

14

NSS

NOT SOLD SEPARAT

Support, Incl in 1

1шт.

Выбрано товаров: 16
