Запчасти Case IH FARMALL 95C (05.100.04[02]) - MAINTENANCE PARTS - STARTER MOTOR, ALTERNATOR, BELTS (05) - SERVICE & MAINTENANCE

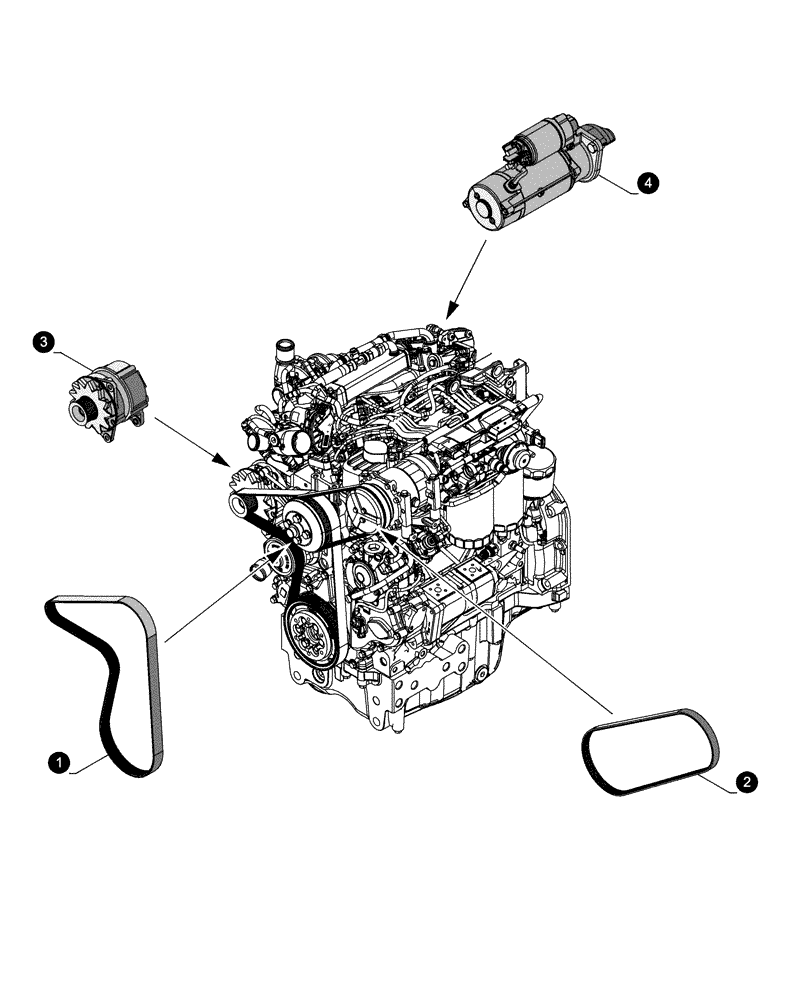

Схема запчастей Case IH FARMALL 95C - (05.100.04[02]) - MAINTENANCE PARTS - STARTER MOTOR, ALTERNATOR, BELTS (05) - SERVICE & MAINTENANCE
1
4
2
3

Артикул

Название

Примечание

Количество

1

84426014

BELT,28mm W x 1432mm L, 8 Ribs

Main Drive

1шт.

2

84469820

BELT,14mm W x 884mm L, 4 Ribs

A/C Compressor

1шт.

3

47383500

ALTERNATOR,14V, 120A, W/Pulley

On Engine

1шт.

4

84208918

STARTER MOTOR,12V, 3.2kW

On Engine

1шт.

Выбрано товаров: 4
