Запчасти Case IH FARMALL 95C (05.100.01) - INITIAL STOCKING LIST (LIST A) (05) - SERVICE & MAINTENANCE

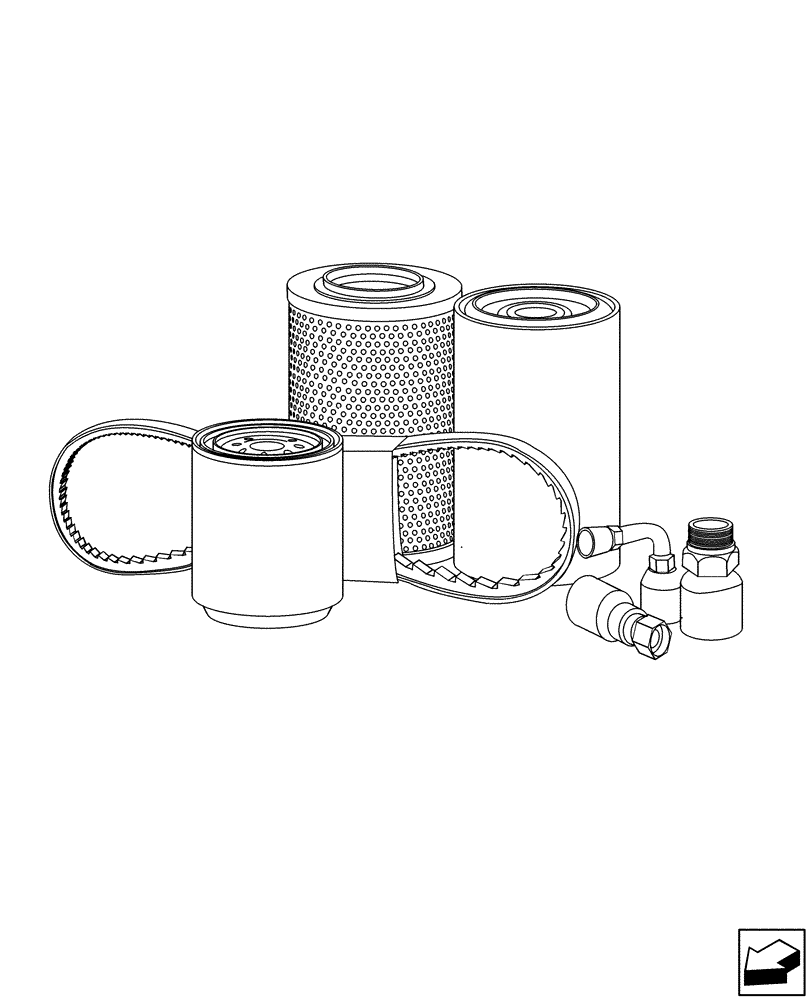

Схема запчастей Case IH FARMALL 95C - (05.100.01) - INITIAL STOCKING LIST (LIST A) (05) - SERVICE & MAINTENANCE

Артикул

Название

Примечание

Количество

1

47565055

CAB FILTER,Cab, 374mm L x 99mm W x 51mm Thk, Nonwoven

Nonwoven, Air

2шт.

2

84577445

CAB FILTER,Cab, 207.5mm L x 149.5mm W x 28mm Thk, Paper

Paper, Air

2шт.

3

84479228

AIR FILTER

Cartridge, Main

1шт.

4

84479225

AIR FILTER

Cartridge, Safety

1шт.

5

84328598

FUEL FILTER,40mm OD x 109mm L, M14 x 1.5, 350 Microns

Precleaner

1шт.

6

84413370

FILTER PARTICULATE

1шт.

6

84413370R

REMAN-FLTR PARTICUL.

1шт.

6

84413370C

CORE-FLTR PARTICUL.

Return Number

1шт.

7

5194879

ELEMENT

Transmission/Pump

1шт.

8

84581942

HYDRAULIC OIL FILTER,135mm OD x 244mm L, M55 x 1.5, 50 Microns

Lifter/Suction

1шт.

9

47450038

FILTER CARTRIDGE,97mm OD x 195.5mm L, M16 x 1.5

Fuel, Water Separator, on Engine

1шт.

10

47450037

FILTER CARTRIDGE,109mm OD x 173mm L, M18 x 1.5

Fuel, Primary, on Engine

1шт.

11

47535939

ENGINE OIL FILTER,97.5mm OD x 92mm L, M27 x 2, 30 Micron

1шт.

12

84426014

BELT,28mm W x 1432mm L, 8 Ribs

Main Drive, 1432.03mm, 8 Ribs

1шт.

13

84469820

BELT,14mm W x 884mm L, 4 Ribs

A/C Compressor, 883.9mm, 4 Ribs

1шт.

Выбрано товаров: 15
