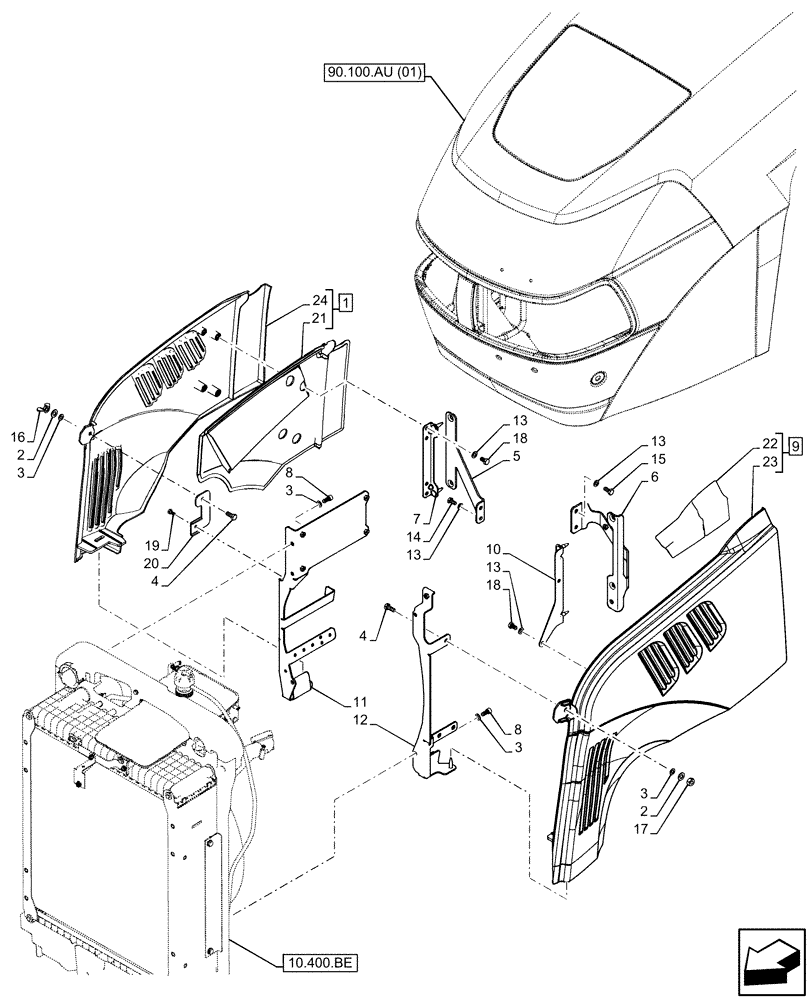

Запчасти Case IH FARMALL 95C (90.100.AC[01]) - HOOD, SIDE PANEL - END YR 10-FEB-2014 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84472091

SIDE PANEL

ASSY, RH, Incl 21, 24

1шт.

2

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

2шт.

3

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

12шт.

4

16043420

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

5

84546520

BRACKET

RH

1шт.

6

47422861

BRACKET

LH

1шт.

7

84497480

BRACKET

1шт.

8

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

9

84551788

SIDE PANEL

ASSY, LH, Incl 22, 23

1шт.

10

84546494

BRACKET

1шт.

11

47523036

BRACKET

RH

1шт.

12

47359424

BRACKET

LH

1шт.

13

13507104

WASHER,9.2mm ID x 16mm OD x 1.5mm Thk

9.2 x 16 x 1.5

13шт.

14

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

15

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

16

10102001

WING NUT,Wing Nut, M8 x 1.25

1шт.

17

16100814

NUT,M8, Cl 8, DAC

1шт.

18

16043024

SCREW,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

4шт.

19

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

1шт.

20

84535050

BRACKET

RH

1шт.

21

84472072

SHIELD

RH

1шт.

22

84471997

HEAT SHIELD

LH

1шт.

23

NSS

NOT SOLD SEPARAT

Panel, Incl in 9

1шт.

24

NSS

NOT SOLD SEPARAT

Panel, Incl in 1

1шт.
