Запчасти Case IH FARMALL 95C (82.300.AY[02]) - VAR - 334490, 336490, 336740, 336741, 336742, 336743, 335490, 337490, 336744, 336745, 336746, 336747 - LOADER BUCKET, PIN (82) - FRONT LOADER & BUCKET

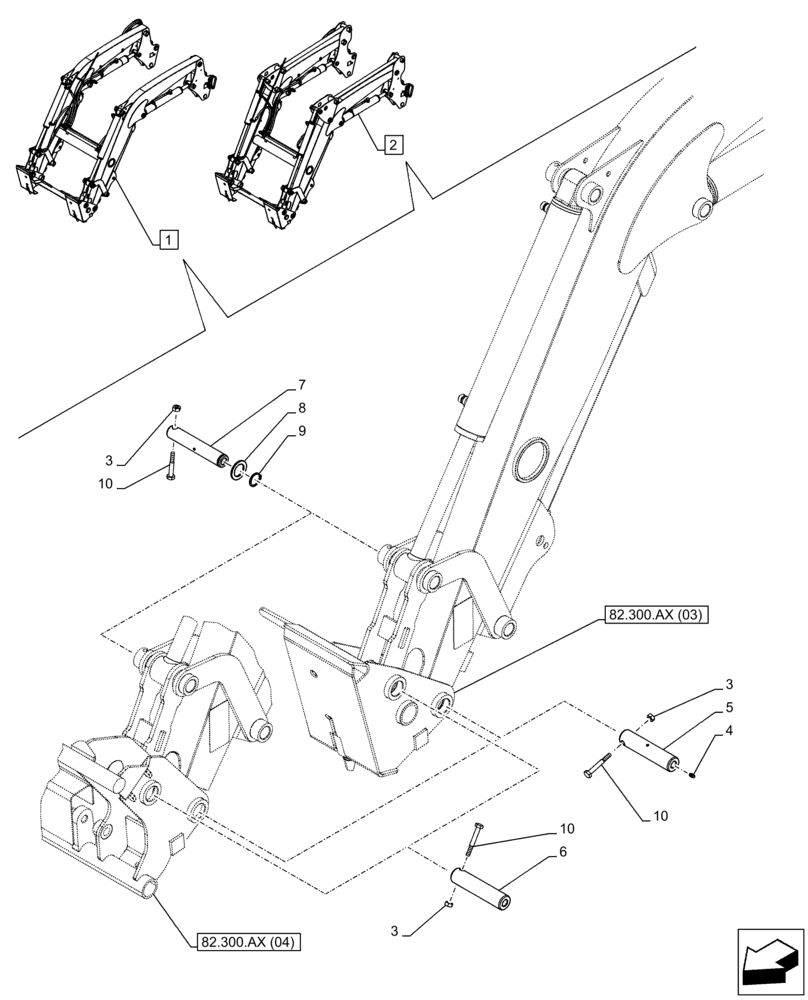

Схема запчастей Case IH FARMALL 95C - (82.300.AY[02]) - VAR - 334490, 336490, 336740, 336741, 336742, 336743, 335490, 337490, 336744, 336745, 336746, 336747 - LOADER BUCKET, PIN (82) - FRONT LOADER & BUCKET
10
4
3
2
5
6
10
3
3
7
8
82.300.ax (03)
10
82.300.ax (04)
1
9

Артикул

Название

Примечание

Количество

1

84467877

LOADER

ASSY

1шт.

Front Loader (HEAVY) with 4 couplers - SSL Tool Attach., Var. 334490, 336490, 336740

1шт.

1

47592521

LOADER

ASSY

1шт.

Front Loader (HEAVY) with 4 couplers, with Diverter - SSL Tool Attach., Var. 336741

1шт.

1

47590395

LOADER

ASSY

1шт.

Front Loader (HEAVY) with 4 couplers - EU Tool Attach., Var. 336742

1шт.

1

47592519

LOADER

ASSY

1шт.

Front Loader (HEAVY) with 4 couplers, with Diverter - EU Tool Attach., Var. 336743

1шт.

2

84467881

LOADER

ASSY

1шт.

Front Loader (HEAVY, Self Leveling) with 4 couplers - SSL Tool Attach., Var. 335490, 337490, 336744

1шт.

2

47649274

LOADER

ASSY

1шт.

Front Loader (HEAVY, Self Leveling) with 4 couplers, with Diverter - SSL Tool Attach., Var. 336745

1шт.

2

47504906

LOADER

ASSY

1шт.

Front Loader (HEAVY, Self Leveling) with 4 couplers - EU Tool Attach., Var. 336746

1шт.

2

47504995

LOADER

ASSY

1шт.

Front Loader (HEAVY, Self Leveling) with 4 couplers, with Diverter - EU Tool Attach., Var. 336747

1шт.

3

12574511

LOCK NUT,M10 x 1.25, Cl 8

6шт.

4

87588865

FITTING,M6 x 1 x 12mm L

M6 x 1 x 12mm

2шт.

5

84393572

PIN,38mm OD x 167.5mm L

2шт.

6

84575159

PIN

2шт.

7

84575160

PIN

4шт.

8

84406164

SPACER

2шт.

9

84406163

LOCKING RING

2шт.

10

86624979

BOLT,Hex, M10 x 75mm, Cl 10.9

6шт.

Выбрано товаров: 24
