(82.300.AX[01]) - VAR - 333489, 335489, 336730, 336731, 334489, 339489, 336734, 336735 - LOADER BUCKET, QUICK COUPLER

Запчасти Case IH FARMALL 95C (82.300.AX[01]) - VAR - 333489, 335489, 336730, 336731, 334489, 339489, 336734, 336735 - LOADER BUCKET, QUICK COUPLER (82) - FRONT LOADER & BUCKET

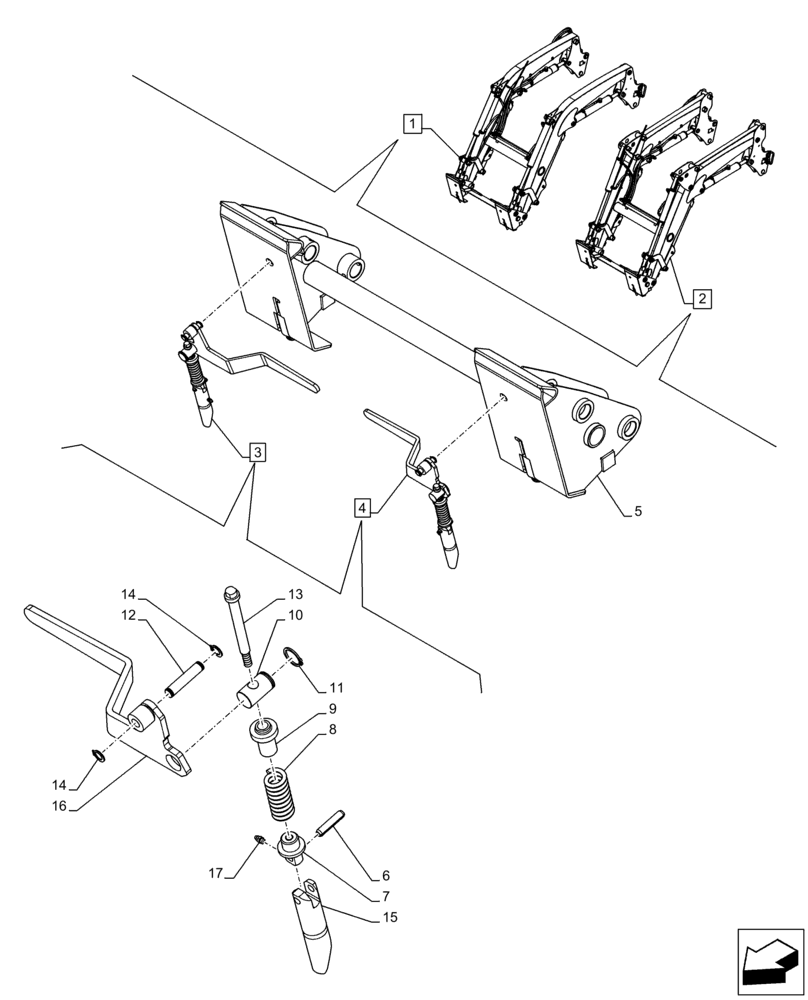

Схема запчастей Case IH FARMALL 95C - (82.300.AX[01]) - VAR - 333489, 335489, 336730, 336731, 334489, 339489, 336734, 336735 - LOADER BUCKET, QUICK COUPLER (82) - FRONT LOADER & BUCKET
7
1
6
5
10
14
15
13
3
17
2
11
9
12
16
8
4
14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84321724

LOADER

ASSY

1шт.

Front Loader (LIGHT) with 4 couplers - SSL Tool Attach., Var. 333489, 335489, 336730

1шт.

1

47592515

LOADER

ASSY

1шт.

Front Loader (LIGHT) with 4 couplers, with Diverter - SSL Tool Attach., Var. 336731

1шт.

2

84321725

LOADER

ASSY

1шт.

Front Loader (LIGHT, Self Leveling) with 4 couplers - SSL Tool Attach., Var. 334489, 339489, 336734

1шт.

2

47649271

LOADER

ASSY

1шт.

Front Loader (LIGHT, Self Leveling) with 4 couplers, with Diverter - SSL Tool Attach., Var. 336735

1шт.

3

NS

NOT SERVICED

LEVER ASSY RH, Incl 6 - 17

1шт.

Order Components

1шт.

4

NS

NOT SERVICED

LEVER ASSY LH, Incl 6 - 17

1шт.

Order Components

1шт.

5

84406180

QUICK-HITCH

1шт.

6

84406182

SPLIT PIN/SAFETY PIN

2шт.

7

84406183

GUIDE BUSHING

2шт.

8

86610167

SPRING,Compression, 35.15mm OD x 101.6mm L

2шт.

9

86610166

GUIDE,13.5mm ID x 22mm OD x 46.6mm L

2шт.

10

84406184

PIN

2шт.

11

84408820

SNAP RING,M25, Ext

2шт.

12

84406185

PIN

2шт.

13

86506112

12 PT SCREW,3/8" - 16 x 5" L

2шт.

14

11066176

SNAP RING,M13, Ext

4шт.

15

86575348

PIN,31.75mm x 142mm L

2шт.

16

84406181

LEVER

RH

1шт.

16

84408819

LEVER

LH

1шт.

17

13407211

LUBE NIPPLE,M10 x 1

2шт.
