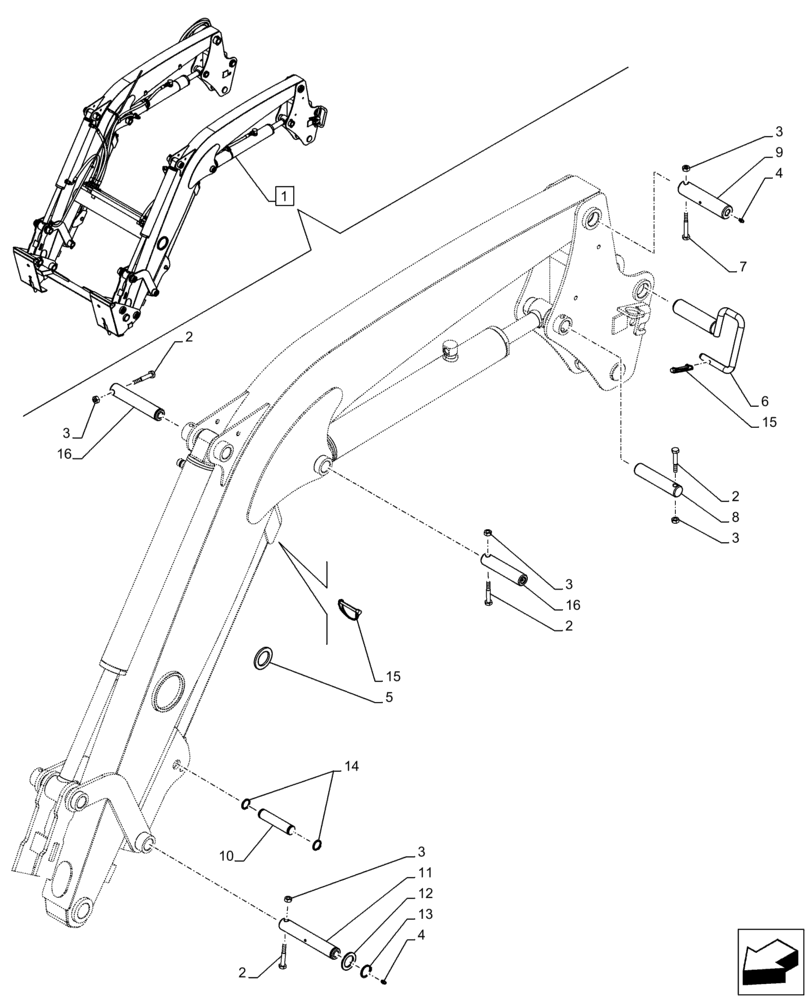

Запчасти Case IH FARMALL 95C (82.100.BG[01]) - VAR - 333489, 335489, 336730, 336731, 336732, 336733 - LOADER ARM, PIN (82) - FRONT LOADER & BUCKET

1

84321724

LOADER

ASSY

1шт.

Front Loader (LIGHT) with 4 couplers - SSL Tool Attach., Var. 333489, 335489, 336730

1шт.

1

47592515

LOADER

ASSY

1шт.

Front Loader (LIGHT) with 4 couplers, with Diverter - SSL Tool Attach., Var. 336731

1шт.

1

47556494

LOADER

ASSY

1шт.

Front Loader (LIGHT) with 4 couplers - EU Tool Attach., Var. 336732

1шт.

1

47592511

LOADER

ASSY

1шт.

Front Loader (LIGHT) with 4 couplers, with Diverter - EU Tool Attach., Var. 336733

1шт.

2

1185622

BOLT,Hex, M10 x 65, 10.9

8шт.

3

12574511

LOCK NUT,M10 x 1.25, Cl 8

10шт.

4

87588865

FITTING,M6 x 1 x 12mm L

M6 x 1 x 12mm

4шт.

5

47411907

SHIM,mm ID x 33.5mm OD x 1.5mm Thk

33.5mm OD x 1.5mm

5шт.

5

47411909

SHIM,mm ID x 33.5mm OD x 2mm Thk

33.5mm OD x 2mm

5шт.

5

47411904

SHIM,mm ID x 33.5mm OD x 1mm Thk

33.5mm OD x 1mm

5шт.

5

84575169

SPACER,39mm OD x 1.5mm L

39.5.5mm OD x 1.5mm

5шт.

5

84575170

SPACER,39mm OD x 2mm L

39.5mm OD x 2mm

5шт.

5

84575168

SPACER,39mm OD x 1mm L

39.5mm OD x 1mm

5шт.

6

84393576

PIN

2шт.

7

1537277

BOLT,Hex, M10 x 1.5 x 85mm, Cl 10.9

2шт.

8

84393585

PIN

2шт.

9

84393572

PIN,38mm OD x 167.5mm L

2шт.

10

84405805

PIN

2шт.

11

84406123

PIN

2шт.

12

84406124

SPACER

2шт.

13

84406125

LOCKING RING

2шт.

14

84406126

LOCKING RING

4шт.

15

84406127

PIN

4шт.

16

84393753

PIN

4шт.
