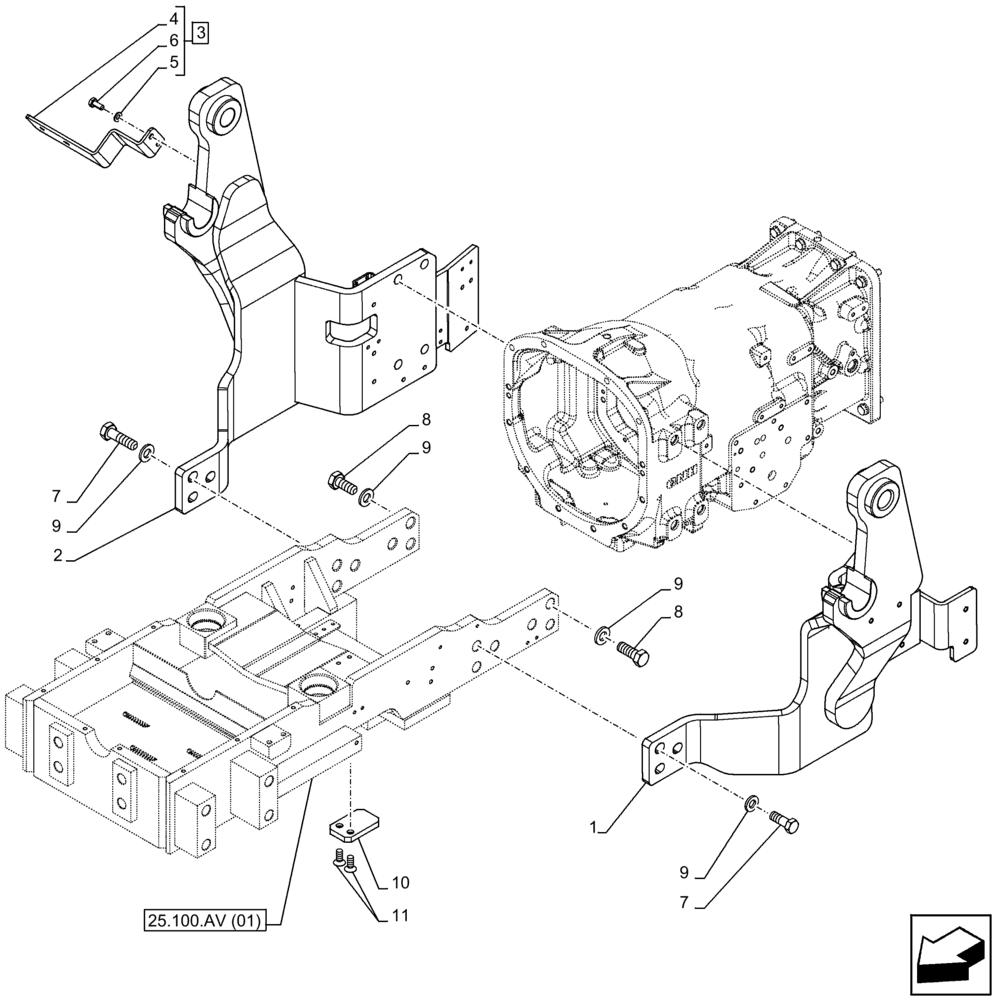

Запчасти Case IH FARMALL 95C (82.100.AK[02]) - VAR - 337490, 338498, 334490, 335490, 336490, 336740, 336741, 336742, 336743, 336744, 336745, 336746, 336747 - LOADER, SIDE MEMBER (82) - FRONT LOADER & BUCKET

1

84404378

BRACKET

LH

1шт.

2

84557043

BRACKET

RH

1шт.

3

84318326

BRACKET

ASSY, Incl 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

Bracket, Incl in 3

1шт.

5

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

2шт.

6

15970724

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

7

15988631

BOLT,Hex, M20 x 1.5 x 75mm, Cl 10.9

6шт.

8

15988231

BOLT,Hex, M20 x 1.5 x 55mm, Cl 10.9, Full Thd

6шт.

9

11191879

BELLEVILLE WASHER,Belleville, 20mm ID x 38mm OD x 5.2mm Thk

12шт.

10

87572509

SPACER

Limit Axle Oscillation

2шт.

11

14442621

SCREW,Flat Csk Hd, M10 x 1.25 x 25mm, Cl 8.8

4шт.
