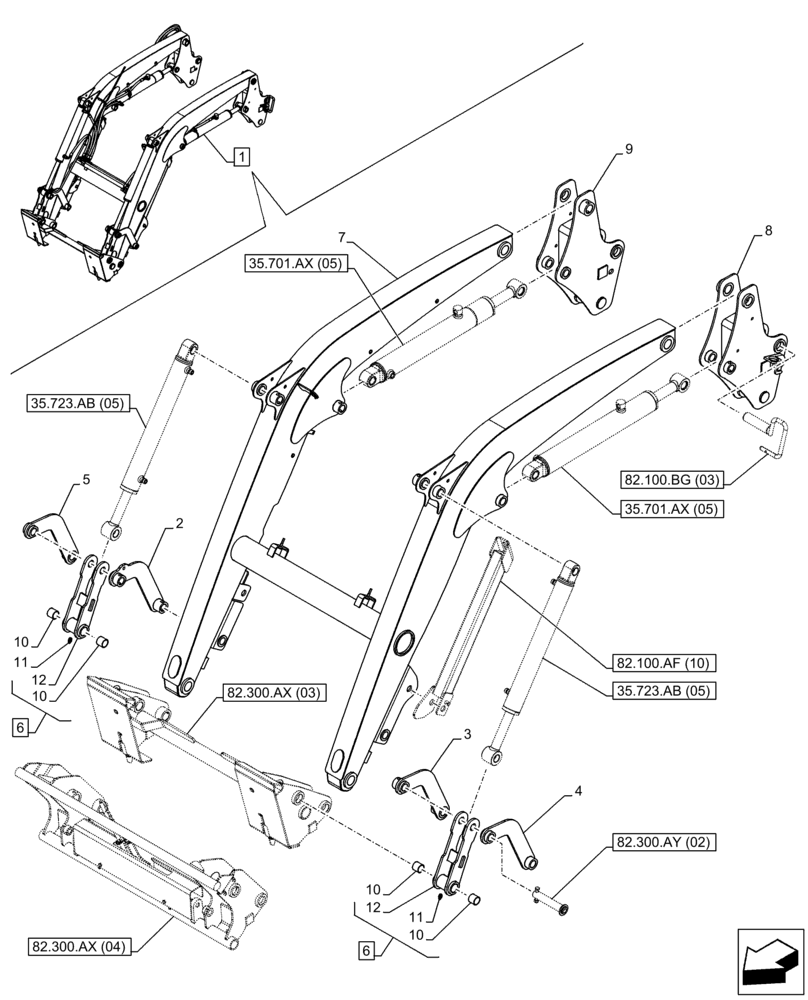

Запчасти Case IH FARMALL 95C (82.100.AF[09]) - VAR - 334490, 336490, 336740, 336742 - LOADER ARM, ARM/LIFTING DEVICE (82) - FRONT LOADER & BUCKET

1

84467877

LOADER

ASSY

1шт.

Front Loader (HEAVY) with 4 couplers - SSL Tool Attach., Var. 334490, 336490, 336740

1шт.

1

47590395

LOADER

ASSY

1шт.

Front Loader (HEAVY) with 4 couplers - EU Tool Attach., Var. 336742

1шт.

2

84602307

LEVER

RH, Inner

1шт.

3

84602322

LEVER

LH, Inner

1шт.

4

84602315

LEVER

LH, Outer

1шт.

5

84602301

LEVER

RH, Outer

1шт.

6

84602335

CONNECTING LINK

ASSY, Incl 10 - 12

2шт.

7

84602330

LOADER BOOM

ASSY

1шт.

8

84602325

LEVER

LH

1шт.

9

84602327

LEVER

RH

1шт.

10

81901809

BUSHING,38.25mm ID x 43.03mm OD x 34.92mm L

1.50 ID x 1.375

2шт.

11

87588865

FITTING,M6 x 1 x 12mm L

M6 x 1 x 12mm

1шт.

12

NSS

NOT SOLD SEPARAT

Double Rod, Incl in 6

1шт.
