Запчасти Case IH FARMALL 95C (82.100.AA[04]) - VAR - 335490, 337490, 336744, 336745, 336746, 336747 - LOADER ARM, BUSHING (82) - FRONT LOADER & BUCKET

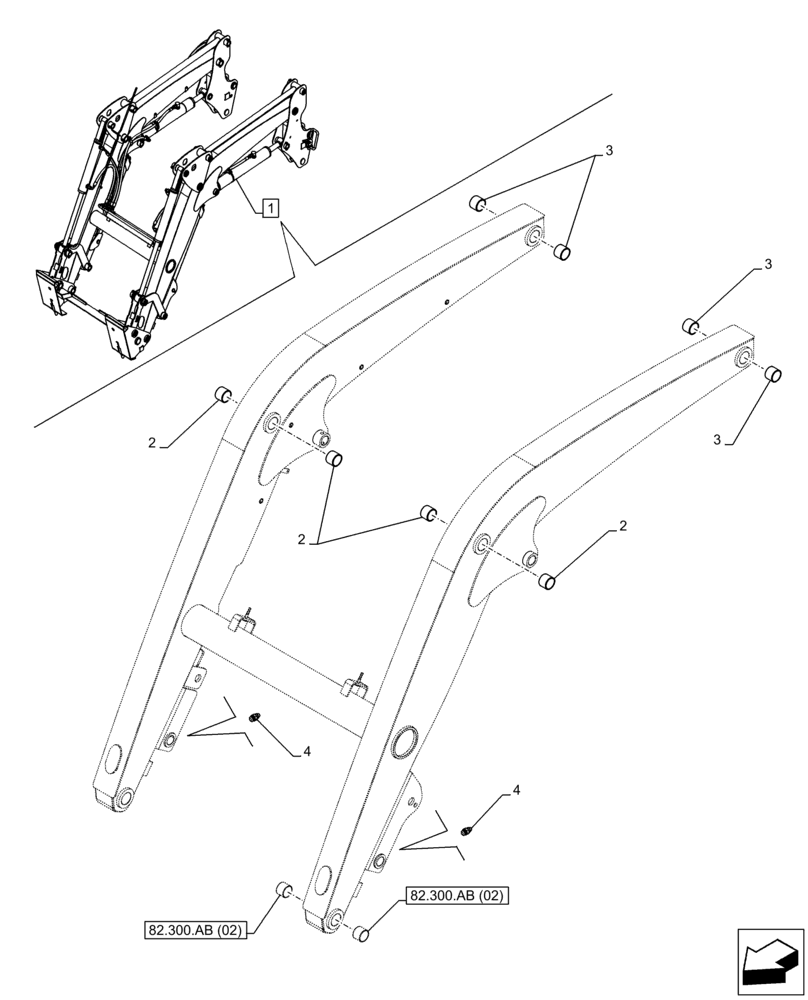

Схема запчастей Case IH FARMALL 95C - (82.100.AA[04]) - VAR - 335490, 337490, 336744, 336745, 336746, 336747 - LOADER ARM, BUSHING (82) - FRONT LOADER & BUCKET
82.300.ab (02)
2
3
82.300.ab (02)
4
2
4
3
1
3
2

Артикул

Название

Примечание

Количество

1

84467881

LOADER

ASSY

1шт.

Front Loader (HEAVY, Self Leveling) with 4 couplers - SSL Tool Attach., Var. 335490, 337490, 336744

1шт.

1

47649274

LOADER

ASSY

1шт.

Front Loader (HEAVY, Self Leveling) with 4 couplers, with Diverter - SSL Tool Attach., Var. 336745

1шт.

1

47504906

LOADER

ASSY

1шт.

Front Loader (HEAVY, Self Leveling) with 4 couplers - EU Tool Attach., Var. 336746

1шт.

1

47504995

LOADER

ASSY

1шт.

Front Loader (HEAVY, Self Leveling) with 4 couplers, with Diverter - EU Tool Attach., Var. 336747

1шт.

2

81901809

BUSHING,38.25mm ID x 43.03mm OD x 34.92mm L

1.50 ID x 1.375

4шт.

3

84596883

BUSHING

1.50 ID x 1.375

4шт.

4

87588865

FITTING,M6 x 1 x 12mm L

M6 x 1 x 12mm

2шт.

Выбрано товаров: 11
