Запчасти Case IH FARMALL 95C (41.206.AA[01]) - VAR- 743524 - HYDRAULIC PUMP, COMPONENTS (GEAR 25 CC / 14 CC, PRV) (41) - STEERING

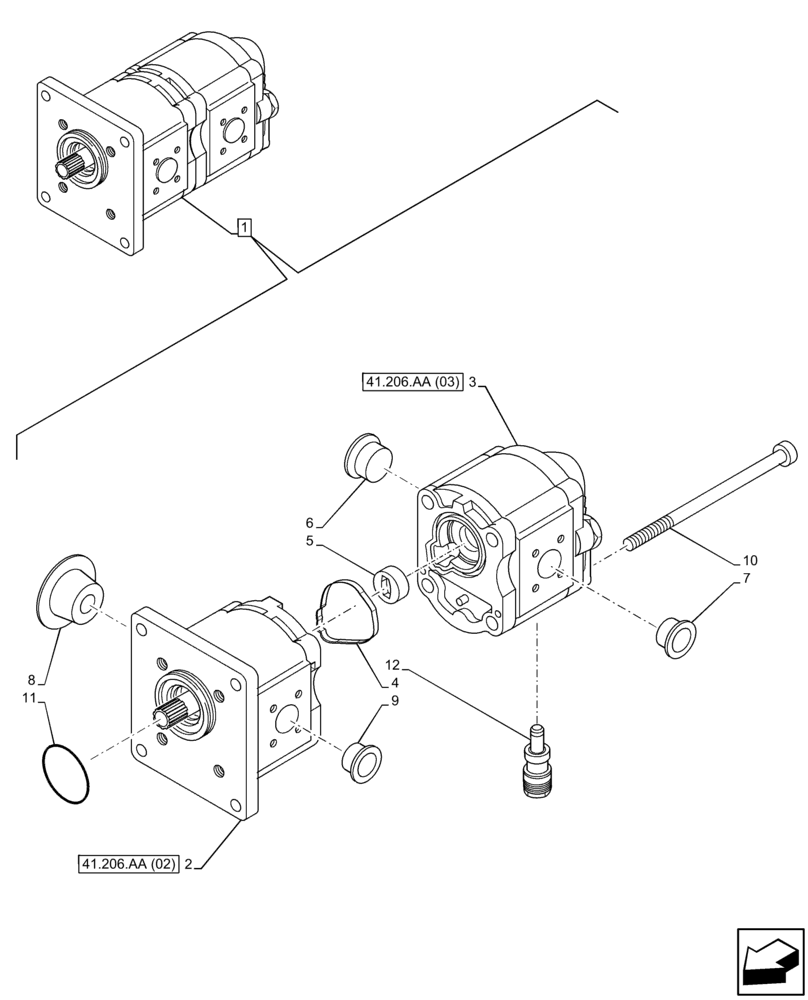

Схема запчастей Case IH FARMALL 95C - (41.206.AA[01]) - VAR- 743524 - HYDRAULIC PUMP, COMPONENTS (GEAR 25 CC / 14 CC, PRV) (41) - STEERING
12
10
8
1
9
3
2
41.206.aa (02)
6
5
7
11
4
41.206.aa (03)

Артикул

Название

Примечание

Количество

1

47456762

HYDRAULIC PUMP,Double Gear, 14CC / 25CC

Gear 25CC/14CC, PRV, ASSY, Incl 2 - 12

1шт.

1

47456762R

REMAN-HYD PUMP

Gear 25CC/14CC, PRV

1шт.

1

47456762C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

47499276

HYDRAULIC PUMP,Gear, 25CC

ASSY, 25CC, Rear Lift

1шт.

3

47499277

HYDRAULIC PUMP,Gear, 14CC

ASSY, 14CC, Hydraulic Services

1шт.

4

47499278

OIL SEAL

1шт.

5

87311810

BUSHING

1шт.

6

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

1шт.

7

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

1шт.

8

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

1шт.

9

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

1шт.

10

87601756

SCREW,M10 x 205mm

4шт.

11

14459080

O-RING,0.103" Thk x 1.737" ID, -132, Cl 5, 75 Duro

1шт.

12

47499279

VALVE PRESSURE RELIE

1шт.

Выбрано товаров: 14
