Запчасти Case IH FARMALL 95C (41.200.AO[02]) - VAR - 743560 - FRONT AXLE, LUBRICATION LINE, 4WD, DIFFERENTIAL LOCK, CONTROLS (41) - STEERING

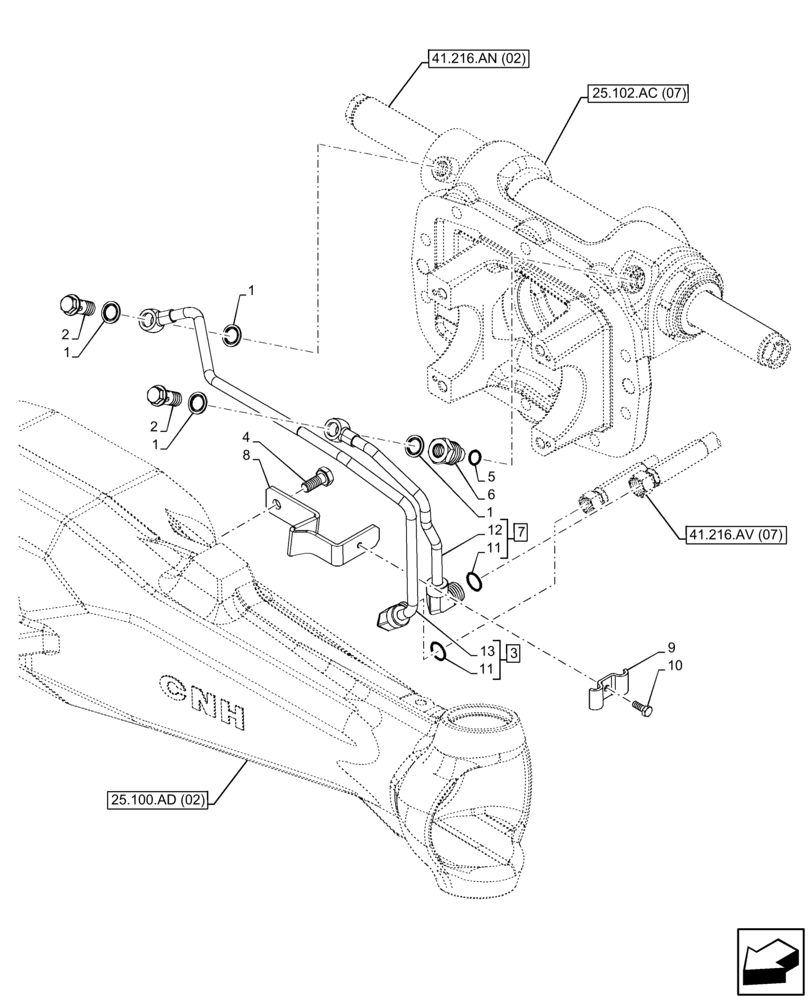

Схема запчастей Case IH FARMALL 95C - (41.200.AO[02]) - VAR - 743560 - FRONT AXLE, LUBRICATION LINE, 4WD, DIFFERENTIAL LOCK, CONTROLS (41) - STEERING
8
1
2
1
10
13
5
41.216.av (07)
25.102.ac (07)
4
9
11
25.100.ad (02)
3
2
1
7
1
11
6
41.216.an (02)
12

Артикул

Название

Примечание

Количество

1

87391188

SEAL,14mm ID x 22mm OD x 1.5mm Thk

4шт.

2

87736840

BOLT,M14 x 1.5 x 30mm

M14 x 1.5 x 30

2шт.

3

47505925

TUBE

to Cylinder Steering, RH, ASSY, Incl 11 (Qty 1), 13

1шт.

4

15970721

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

5

14437785

O-RING,11.3mm ID x 2.4mm

1шт.

6

47124202

HYD CONNECTOR,6 - M14 x 1.5 ORFS

1шт.

7

84396922

TUBE

to Cylinder Steering, LH, ASSY, Incl 11 (Qty 1), 12

1шт.

8

84384195

BRACKET

1шт.

9

4999554

CLAMP,2 Hoses

1шт.

10

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

1шт.

11

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

12

NSS

NOT SOLD SEPARAT

Pipe, Incl in 7

1шт.

13

NSS

NOT SOLD SEPARAT

Pipe, Incl in 3

1шт.

Выбрано товаров: 13
