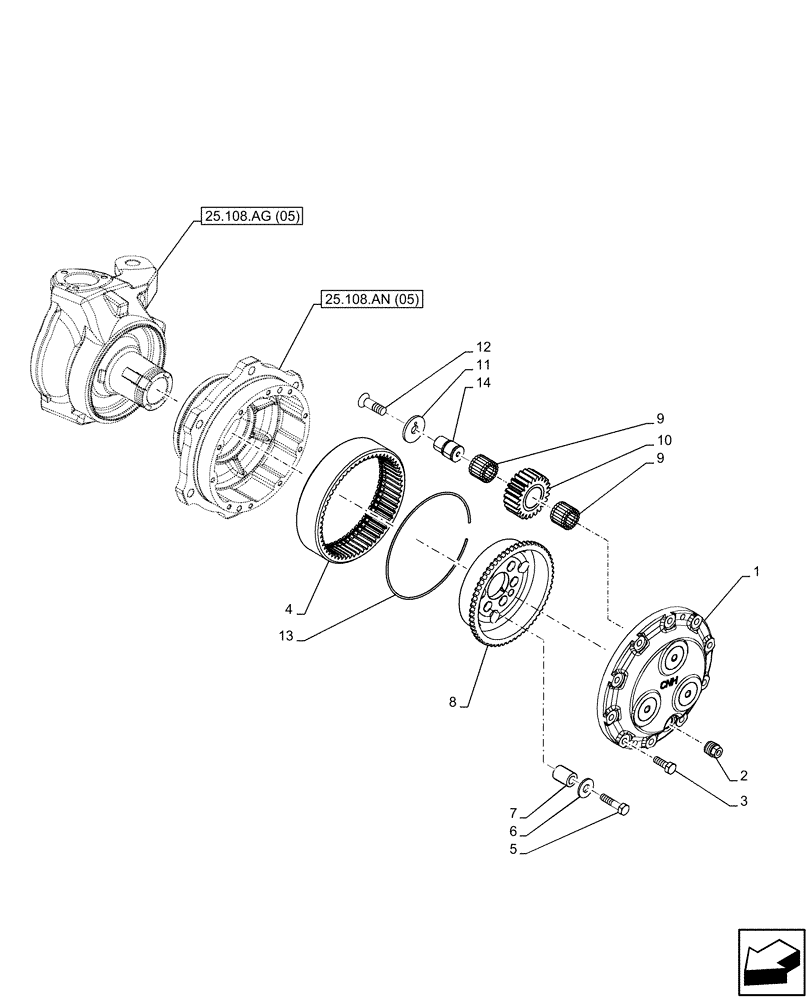

Запчасти Case IH FARMALL 95C (25.108.AB[05]) - VAR - 337323 - FRONT AXLE, PLANETARY REDUCER, 4WD, HEAVY DUTY (25) - FRONT AXLE SYSTEM

1

84339570

PLANET CARRIER

1шт.

2

14326211

PLUG,M22 x 1.50, R50, ZND

1шт.

3

14233834

BOLT,Hex, M10 x 1.25 x 40mm, Cl 10.9

10шт.

4

84328458

RING GEAR,60T

1шт.

5

16323830

BOLT,Hex, M10 x 1.25 x 45mm

6шт.

6

11190679

BELLEVILLE WASHER,M10 Bolt Size x 27mm OD x 2.5mm Thk

6шт.

7

5179292

BUSHING,10.5mm ID x 15.9mm OD x 22.8mm L

6шт.

8

84339420

SUPPORT

1шт.

9

84380206

NEEDLE ROLLER,4mm OD x 12mm L

4 x 12

186шт.

10

84183888

PLANETARY GEAR,23T

3шт.

11

84183884

THRUST WASHER,13mm ID x 40mm OD x 7mm Thk

3шт.

12

84273746

SCREW,FLAT, M12 x 1.75 x 35mm, Cl 12.9

M12 x 35

3шт.

13

5165162

SNAP RING,M50, Int

1шт.

14

84299880

PIN,40.3mm OD x 41.3mm L

3шт.
