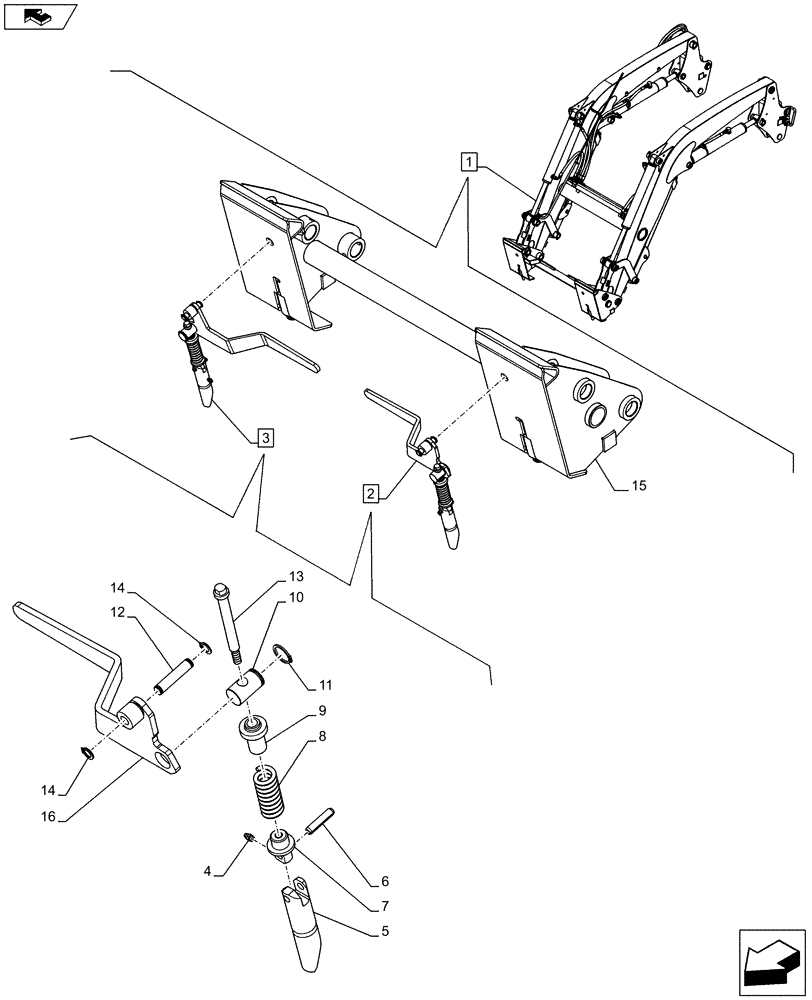

Запчасти Case IH FARMALL 95C (82.300.AX[01]) - VAR - 333489, 334490 - LOADER BUCKET, QUICK COUPLER (82) - FRONT LOADER & BUCKET

1

84321724

LOADER

ASSY, Incl 2 - 9

1шт.

For Standard Front Axle, Var. 333489

1шт.

1

84467877

LOADER

ASSY, Incl 2 - 9

1шт.

For Heavy Duty Front Axle, Var. 334490

1шт.

2

NS

NOT SERVICED

LEVER ASSY RH, Incl 4 - 16

1шт.

Order Components

1шт.

3

NS

NOT SERVICED

LEVER ASSY LH, Incl 4 - 16

1шт.

Order Components

1шт.

4

13407211

LUBE NIPPLE,M10 x 1

2шт.

5

86575348

PIN,31.75mm x 142mm L

2шт.

6

84406182

SPLIT PIN/SAFETY PIN

2шт.

7

84406183

GUIDE BUSHING

2шт.

8

86610167

SPRING,Compression, 35.15mm OD x 101.6mm L

2шт.

9

86610166

GUIDE,13.5mm ID x 22mm OD x 46.6mm L

2шт.

10

84406184

PIN

2шт.

11

84408820

SNAP RING,M25, Ext

2шт.

12

84406185

PIN

2шт.

13

86506112

12 PT SCREW,3/8" - 16 x 5" L

2шт.

14

11066176

SNAP RING,M13, Ext

4шт.

15

84406180

QUICK-HITCH

1шт.

16

84406181

LEVER

RH

1шт.

16

84408819

LEVER

LH

1шт.
