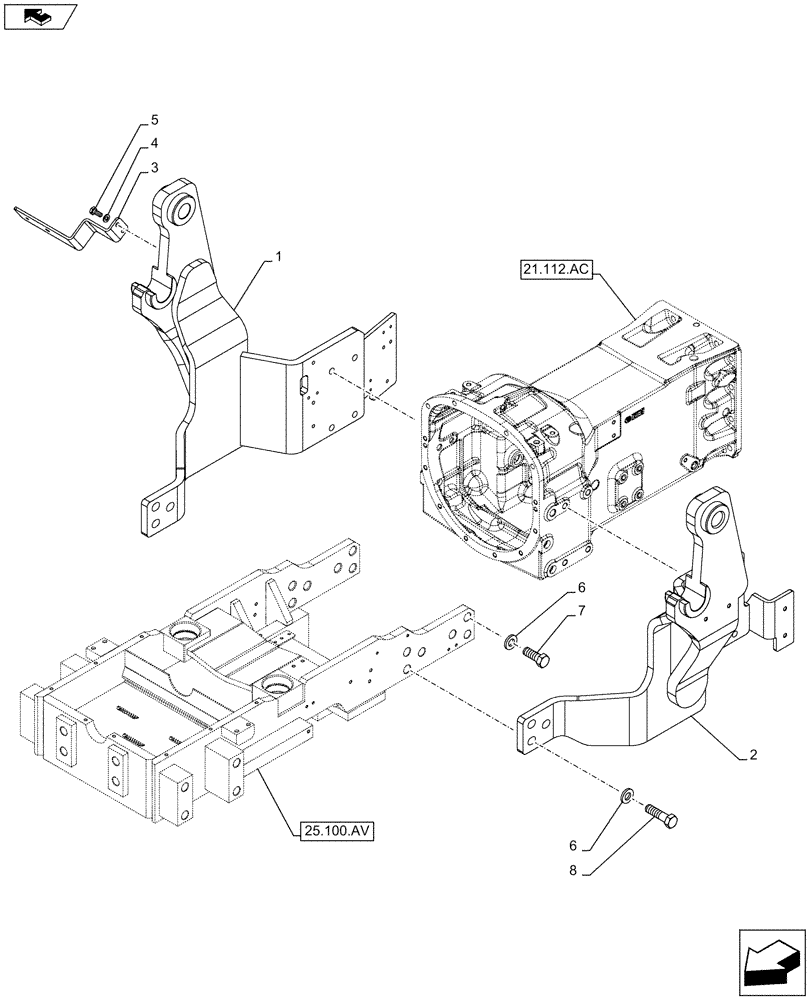

Запчасти Case IH FARMALL 95C (82.100.AK[03]) - VAR. 334490, 335490, 336490, 337490, 338498 - SIDE MEMBER, LOADER ARM (HEAVY) (82) - FRONT LOADER & BUCKET

1

47387198

MOUNTING PLATE

Right

1шт.

2

47384201

BRACKET

Left

1шт.

3

84318326

BRACKET

1шт.

4

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

2шт.

5

15970724

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

6

11191879

BELLEVILLE WASHER,Belleville, 20mm ID x 38mm OD x 5.2mm Thk

12шт.

7

15988231

BOLT,Hex, M20 x 1.5 x 55mm, Cl 10.9, Full Thd

6шт.

8

15988631

BOLT,Hex, M20 x 1.5 x 75mm, Cl 10.9

6шт.
