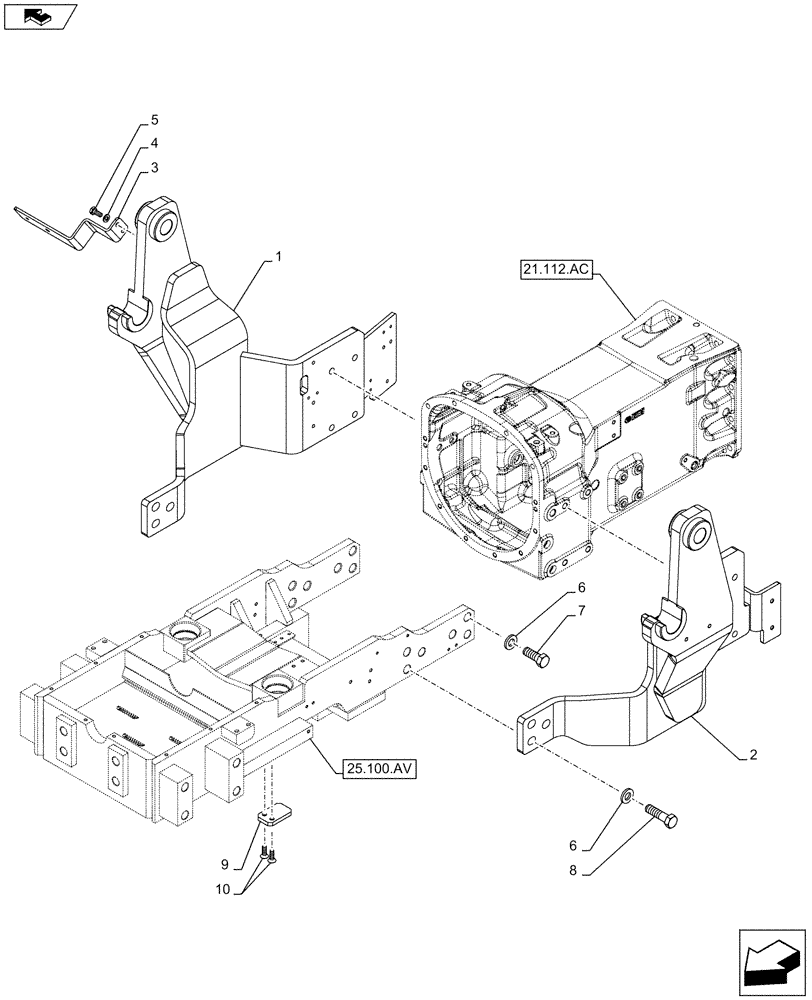

Запчасти Case IH FARMALL 95C (82.100.AK[02]) - VAR - 330489, 333489, 334489, 335489, 339489 - SIDE MEMBER, LOADER ARM (LIGHT) (82) - FRONT LOADER & BUCKET

1

47384218

BRACKET

Right

1шт.

2

47384215

BRACKET

Left

1шт.

3

84318326

BRACKET

1шт.

4

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

2шт.

5

15970724

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

6

11191879

BELLEVILLE WASHER,Belleville, 20mm ID x 38mm OD x 5.2mm Thk

12шт.

7

15988231

BOLT,Hex, M20 x 1.5 x 55mm, Cl 10.9, Full Thd

6шт.

8

15988631

BOLT,Hex, M20 x 1.5 x 75mm, Cl 10.9

6шт.

9

87572509

SPACER

2шт.

10

14442721

SCREW,Hex Soc Flat Hd, M10 x 30, 8.8

4шт.
