/ / / / / / / / (82.100.AF[05]) - VAR - 334489 - LOADER ARM (SELF LEVELLING), ARM/LIFTING DEVICE

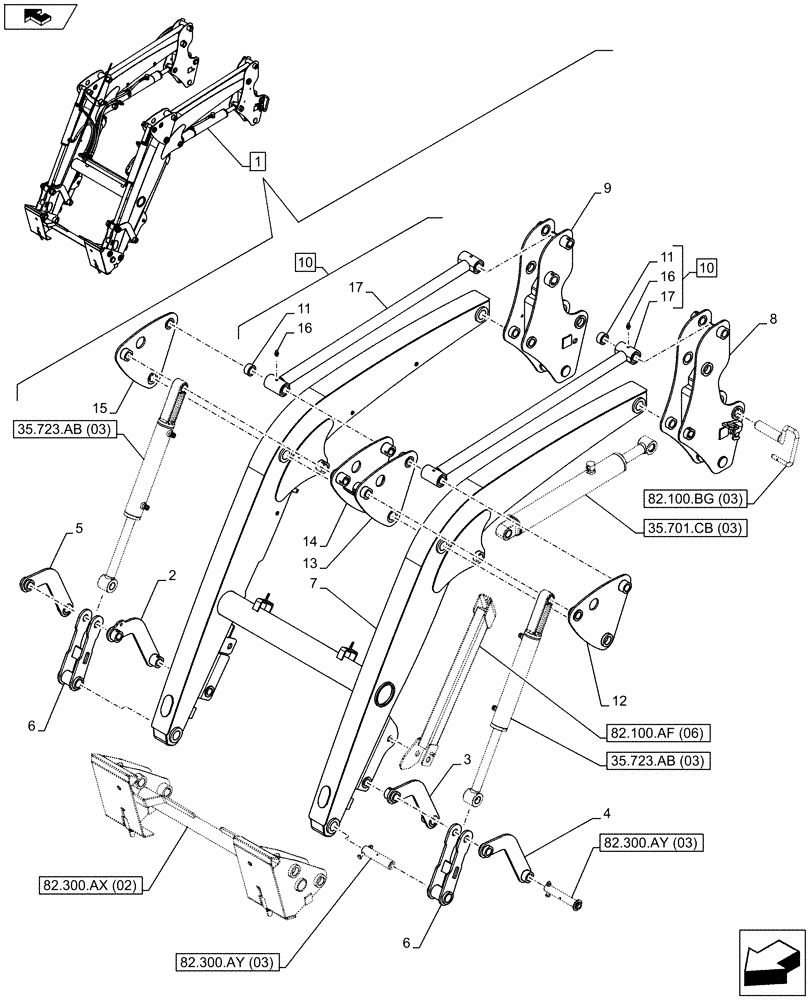

Запчасти Case IH FARMALL 95C (82.100.AF[05]) - VAR - 334489 - LOADER ARM (SELF LEVELLING), ARM/LIFTING DEVICE (82) - FRONT LOADER & BUCKET
![Схема запчастей Case IH FARMALL 95C - (82.100.AF[05]) - VAR - 334489 - LOADER ARM (SELF LEVELLING), ARM/LIFTING DEVICE (82) - FRONT LOADER & BUCKET](https://partsell.ru/storage/images/caseih/5137269.png)
10
16
1
82.100.bg (03)
home
12
17
1
16
6
8
82.100.af (06)
14
7
11
35.723.ab (03)
35.723.ab (03)
4
1
3
13
82.300.ay (03)
10
82.300.ax (02)
2
9
15
6
82.300.ay (03)
17
35.701.cb (03)
5
1
84321725
LOADER
ASSY, Incl 2 - 18
1шт.
2
84393710
LEVER
RH
1шт.
3
84393715
LEVER
LH
1шт.
4
84393699
LEVER
LH
1шт.
5
84393693
LEVER
RH
1шт.
6
84393751
ROD
2шт.
7
NSS
NOT SOLD SEPARAT
Loader arm, Incl in 1
1шт.
8
84393661
SUPPORT
LH
1шт.
9
84393659
SUPPORT
RH
1шт.
10
84422281
ROD
ASSY, Incl 11, 16, 18
2шт.
11
81901809
BUSHING,38.25mm ID x 43.03mm OD x 34.92mm L
4шт.
12
84393669
LEVER
LH
1шт.
13
84393677
LEVER
LH
1шт.
14
84393683
LEVER
RH
1шт.
15
84393666
LEVER
RH
1шт.
16
87588865
FITTING,M6 x 1 x 12mm L
4шт.
17
NSS
NOT SOLD SEPARAT
Rod, Incl in 10
1шт.
