Запчасти Case IH FARMALL 95C (55.404.BM[02]) - VAR - 743580, 332717 - ROAD LIGHT, REAR, W/ CAB - NA (55) - ELECTRICAL SYSTEMS

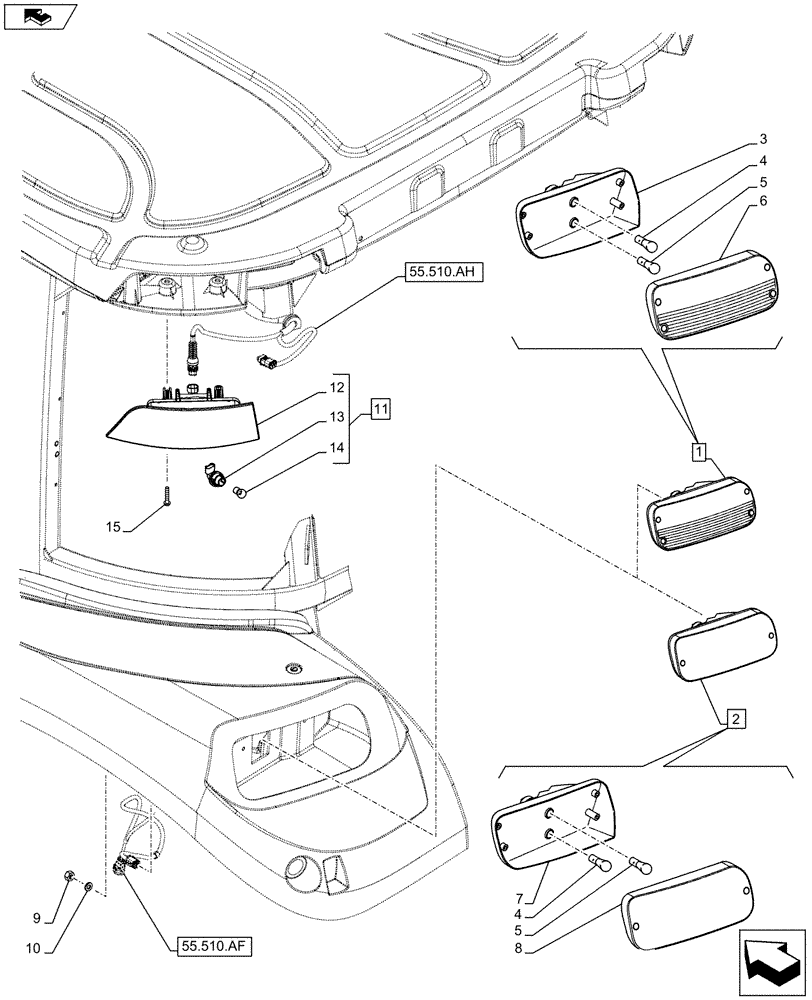

Схема запчастей Case IH FARMALL 95C - (55.404.BM[02]) - VAR - 743580, 332717 - ROAD LIGHT, REAR, W/ CAB - NA (55) - ELECTRICAL SYSTEMS
10
1
4
14
5
8
5
13
15
11
6
2
9
12
55.510.af
7
4
55.510.ah
home
3

Артикул

Название

Примечание

Количество

1

87747246

LIGHT,12V, 21W, Clear/Red

RH, ASSY, Incl 3, 4 (Qty 1), 5 (Qty 1), 6

1шт.

Alternative to PN 47656361

1шт.

1

87747247

LIGHT,12V, 21W, Clear/Red

LH, ASSY, Incl 3, 4 (Qty 1), 5 (Qty 1), 6

1шт.

Alternative to PN 47546376

1шт.

2

47546361

POSITION LAMP,P21, PY, Halogen, 12V, 5W, 21W, Transparent

RH, ASSY, Incl 7, 4 (Qty 1), 5 (Qty 1), 8

1шт.

Alternative to PN 87747246

1шт.

2

47546376

POSITION LAMP,P21, PY, Halogen, 12V, 5W, 21W, Transparent

LH, ASSY, Incl 7, 4 (Qty 1), 5 (Qty 1), 8

1шт.

Alternative to PN 87747247

1шт.

3

NSS

NOT SOLD SEPARAT

Housing, Incl in 1

1шт.

4

14148090

BULB,PY21W, 12V, 21W

2шт.

5

14144690

BULB,P21/5W, 12V, 21/5W

2шт.

6

87304535

LENS

RH

1шт.

6

87304536

LENS

LH

1шт.

7

NSS

NOT SOLD SEPARAT

Housing, Incl in 2

1шт.

8

87714904

LENS

RH

1шт.

8

87714903

LENS

LH

1шт.

9

15896211

NUT,M6, Cl 8

1шт.

10

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

1шт.

11

87301973

FLASHER LAMP,Halogen, 12V, 21W, Amber Lens

Roof Lamp, LH, ASSY, Incl 12 - 14

1шт.

11

87301972

FLASHER LAMP,Halogen, 12V, 21W, Amber Lens

Roof Lamp, RH, ASSY, Incl 12 - 14

1шт.

12

NSS

NOT SOLD SEPARAT

Lamp Housing, Incl in 11

1шт.

13

87304554

HOLDER

1шт.

14

14148190

BULB,P21W, 12V, 21W

1шт.

15

84187820

SCREW,Torx Pan Hd, M6 x 35mm, Cl 8.8

4шт.

Выбрано товаров: 24
