(55.048.AA[02]) - VAR - 744761 - SAFETY SWITCH FOR POWER TAKE-OFF, W/O CAB

Запчасти Case IH FARMALL 95C (55.048.AA[02]) - VAR - 744761 - SAFETY SWITCH FOR POWER TAKE-OFF, W/O CAB (55) - ELECTRICAL SYSTEMS

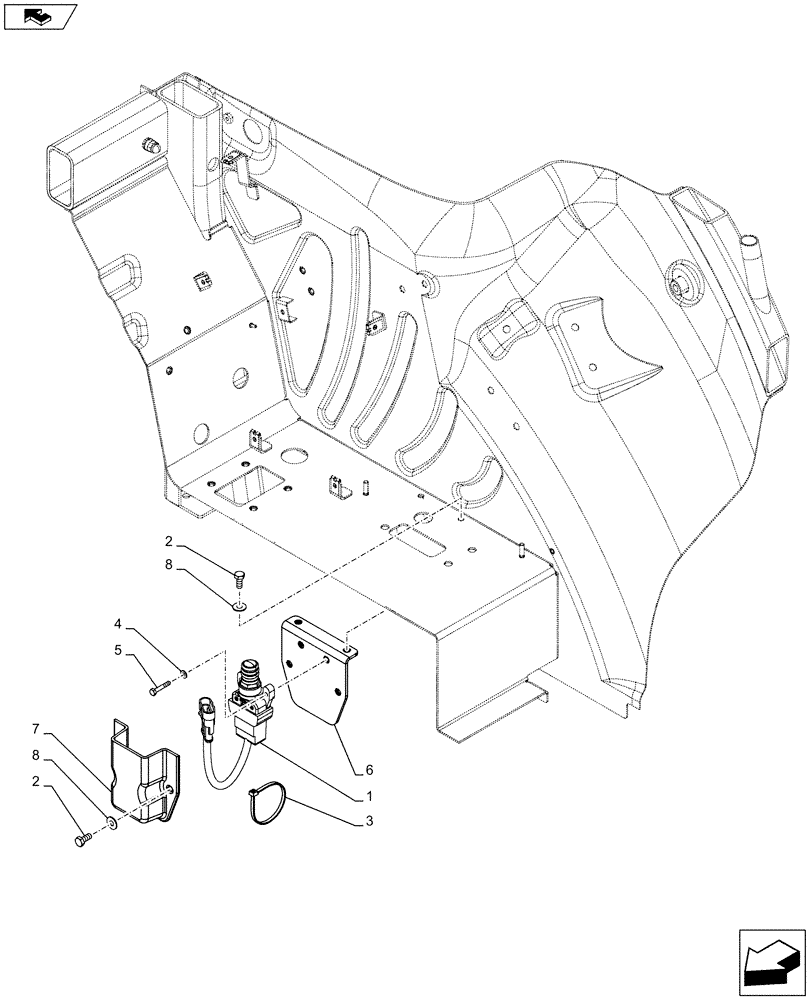

Схема запчастей Case IH FARMALL 95C - (55.048.AA[02]) - VAR - 744761 - SAFETY SWITCH FOR POWER TAKE-OFF, W/O CAB (55) - ELECTRICAL SYSTEMS
4
7
2
6
8
3
2
5
home
1
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87484879

LIMIT SWITCH

PTO Safety switch

1шт.

2

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

4шт.

3

14560187

COLLAR,199mm L

2шт.

4

10519201

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

2шт.

5

10445721

SCREW,Hex, M4 x 25mm, Cl 8.8, Full Thd

2шт.

6

84338313

BRACKET

1шт.

7

84338314

COVER

1шт.

8

12644404

WASHER,6.15mm ID x 15mm OD x 1mm Thk

4шт.
