(41.216.AU[02]) - VAR - 744581, 337323, 338323 - 4WD FRONT AXLE, STEERING CYLINDER HYD. LINE (HEAVY DUTY)

Запчасти Case IH FARMALL 95C (41.216.AU[02]) - VAR - 744581, 337323, 338323 - 4WD FRONT AXLE, STEERING CYLINDER HYD. LINE (HEAVY DUTY) (41) - STEERING

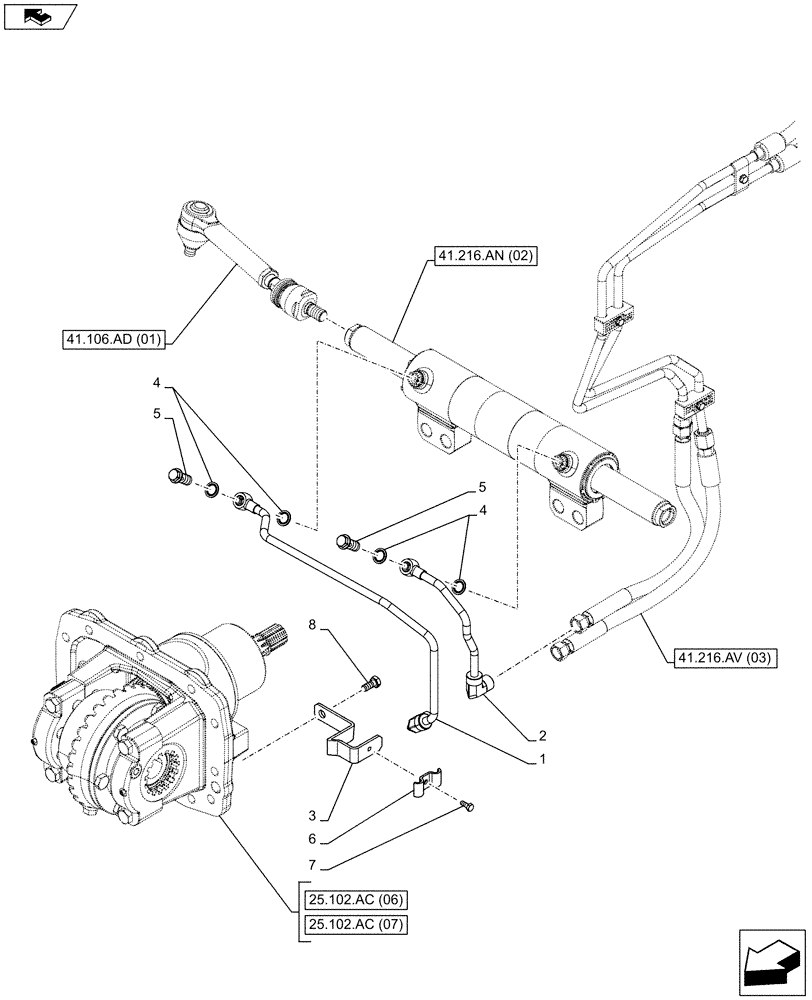

Схема запчастей Case IH FARMALL 95C - (41.216.AU[02]) - VAR - 744581, 337323, 338323 - 4WD FRONT AXLE, STEERING CYLINDER HYD. LINE (HEAVY DUTY) (41) - STEERING
41.216.an (02)
home
8
25.102.ac (06)
7
1
4
2
5
5
6
4
25.102.ac (07)
41.216.
3
41.106.ad (01)
v (03)
a
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84384184

PIPE

RH

1шт.

2

84384187

TUBE

LH

1шт.

3

84384195

BRACKET

1шт.

4

87391188

SEAL,14mm ID x 22mm OD x 1.5mm Thk

4шт.

5

87736840

BOLT,M14 x 1.5 x 30mm

M14 x 1.5 x 30 mm

2шт.

6

4999554

CLAMP,2 Hoses

1шт.

7

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

1шт.

8

15970721

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

Выбрано товаров: 8
