(41.200.AA[02]) - VAR - 337323, 338323, 743560, 743561, 744580, 744581, 744582 - STEERING VALVE, HYDR LINES - 4WD (POWERSHUTTLE, HI-LO)

Запчасти Case IH FARMALL 95C (41.200.AA[02]) - VAR - 337323, 338323, 743560, 743561, 744580, 744581, 744582 - STEERING VALVE, HYDR LINES - 4WD (POWERSHUTTLE, HI-LO) (41) - STEERING

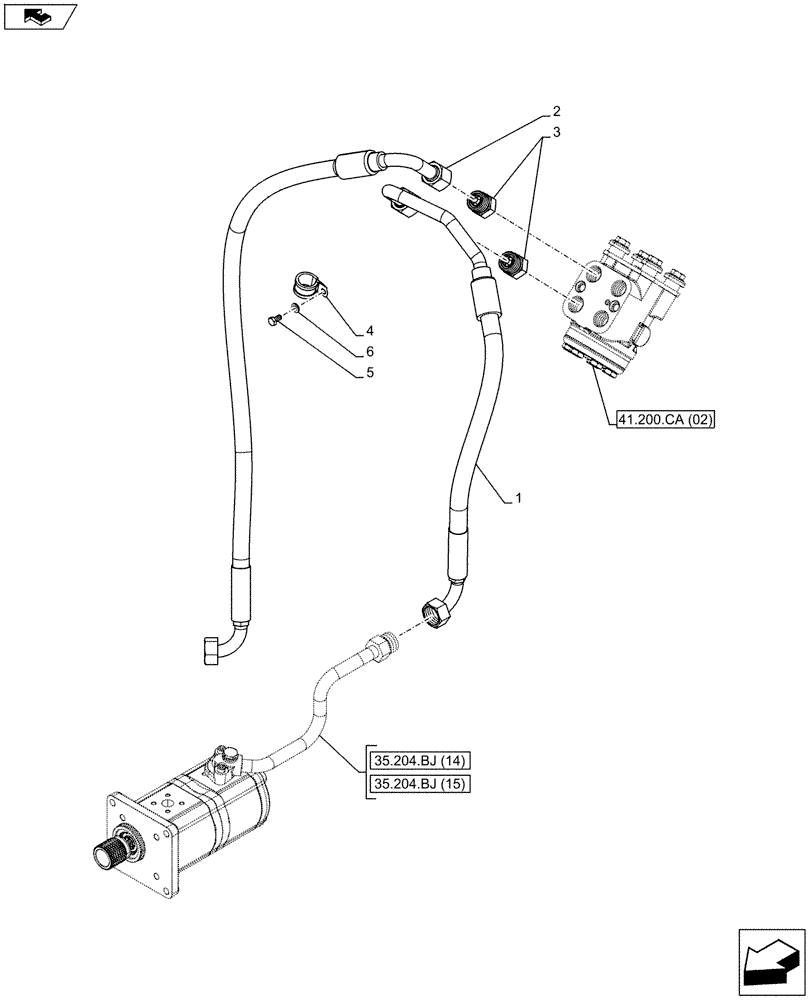

Схема запчастей Case IH FARMALL 95C - (41.200.AA[02]) - VAR - 337323, 338323, 743560, 743561, 744580, 744581, 744582 - STEERING VALVE, HYDR LINES - 4WD (POWERSHUTTLE, HI-LO) (41) - STEERING
5
35.204.bj (14)
41.200.ca (02)
35.204.bj (15)
6
2
3
4
home
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47421157

HYD TUBE

Delivery for Steering

1шт.

2

47458909

HYDRAULIC HOSE

Return for Steering

1шт.

3

84316432

HYD CONNECTOR,Straight, 1"-14" ORFS, 1/2"-14" BSPP ORB

2шт.

4

10441890

CLAMP,22mm, Coat, 7mm Bolt Hole, P Type

1шт.

5

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

1шт.

6

14499301

WASHER,M6 x 12.00mm OD x 1.60mm Overwrite

1шт.

Выбрано товаров: 6
