Запчасти Case IH FARMALL 95C (41.200.AA[01]) - VAR - 337323, 338323, 743560, 743561, 744580, 744581, 744582 - STEERING VALVE, HYDR LINES - 4WD (SHUTTLE) (41) - STEERING

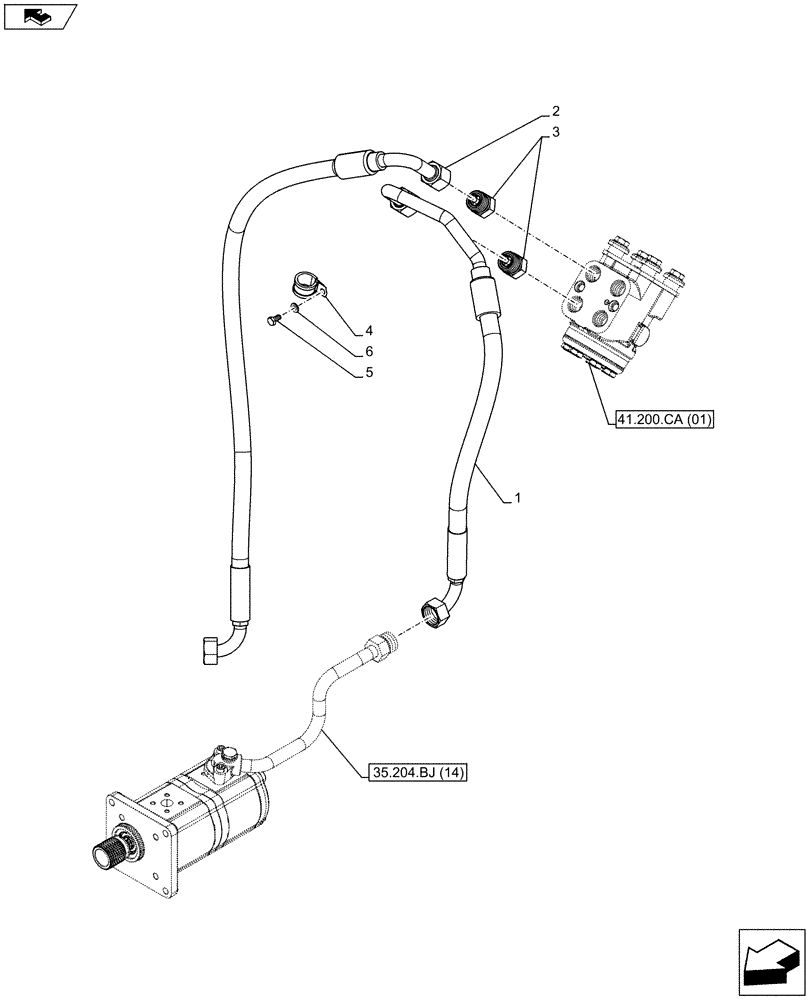

Схема запчастей Case IH FARMALL 95C - (41.200.AA[01]) - VAR - 337323, 338323, 743560, 743561, 744580, 744581, 744582 - STEERING VALVE, HYDR LINES - 4WD (SHUTTLE) (41) - STEERING
4
35.204.bj (14)
3
home
6
2
41.200.ca (01)
1
5

Артикул

Название

Примечание

Количество

1

47421157

HYD TUBE

Delivery for Steering

1шт.

2

47413286

HYDRAULIC HOSE,12.7mm ID x 1090mm L

Return for Steering

1шт.

3

84316432

HYD CONNECTOR,Straight, 1"-14" ORFS, 1/2"-14" BSPP ORB

2шт.

4

10441890

CLAMP,22mm, Coat, 7mm Bolt Hole, P Type

1шт.

5

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

1шт.

6

14499301

WASHER,M6 x 12.00mm OD x 1.60mm Overwrite

1шт.

Выбрано товаров: 6
