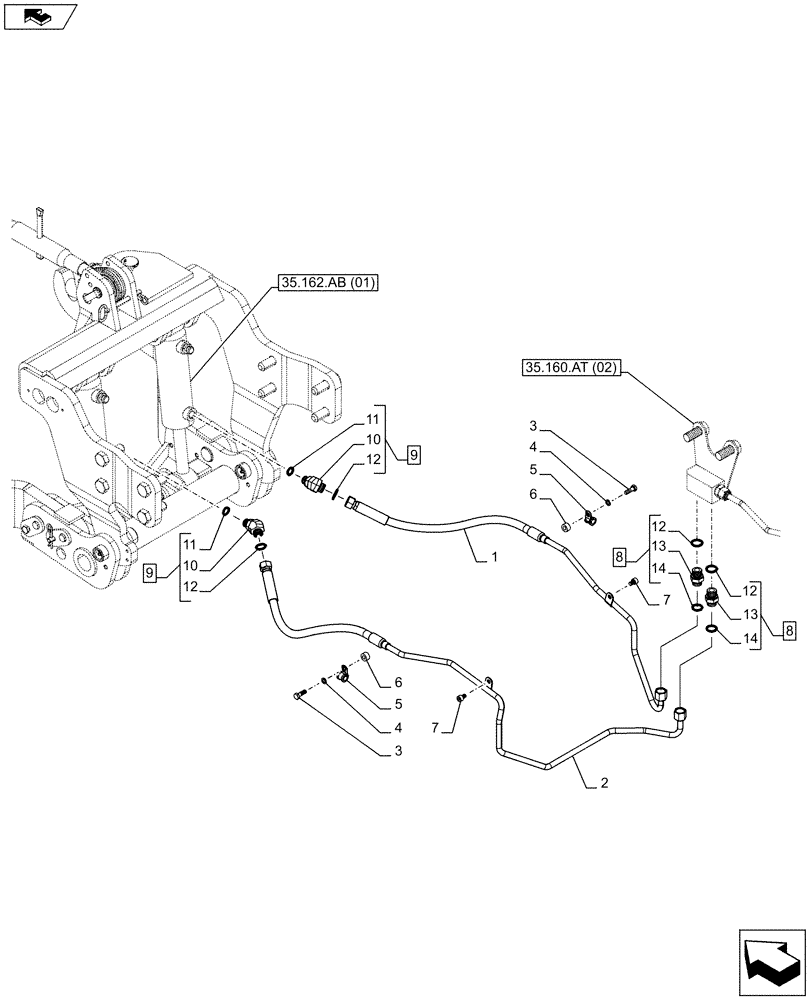

Запчасти Case IH FARMALL 95C (35.162.AG[01]) - VAR - 331789 - 3 POINT HITCH, FRONT, CYLINDER, LINES, W/O FRONT PTO (35) - HYDRAULIC SYSTEMS

1

84250040

HYD TUBE

1шт.

2

84250041

HYD TUBE

1шт.

3

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

4

14499424

WASHER,8.4mm ID x 14mm OD x 1.6mm Thk

2шт.

5

10450290

CLAMP,12mm, Coat, 9mm Bolt Hole, P Type

2шт.

6

13605810

SPACER

2шт.

7

CAS2168745

SCREW,M8 x 12mm, Cl 8.8

M8 x 12 mm

2шт.

8

86579678

HYD CONNECTOR,13/16"-16 ORFS x M22 x 1.5 ORB

ASSY, Incl 12, 14

3шт.

9

86639056

ELBOW,45 Degree, 13/16"-18 ORFS x M18 x 1.5 ORB

ASSY, Incl 11, 12

2шт.

10

NSS

NOT SOLD SEPARAT

Fitting, incl in 9

2шт.

11

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

12

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

4шт.

13

NSS

NOT SOLD SEPARAT

Fitting, incl in 8

2шт.

14

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2шт.
