(35.160.AT[02]) - VAR - 332789 - 3 POINT HITCH, FRONT, HYDRAULIC VALVE, WITH FRONT PTO

Запчасти Case IH FARMALL 95C (35.160.AT[02]) - VAR - 332789 - 3 POINT HITCH, FRONT, HYDRAULIC VALVE, WITH FRONT PTO (35) - HYDRAULIC SYSTEMS

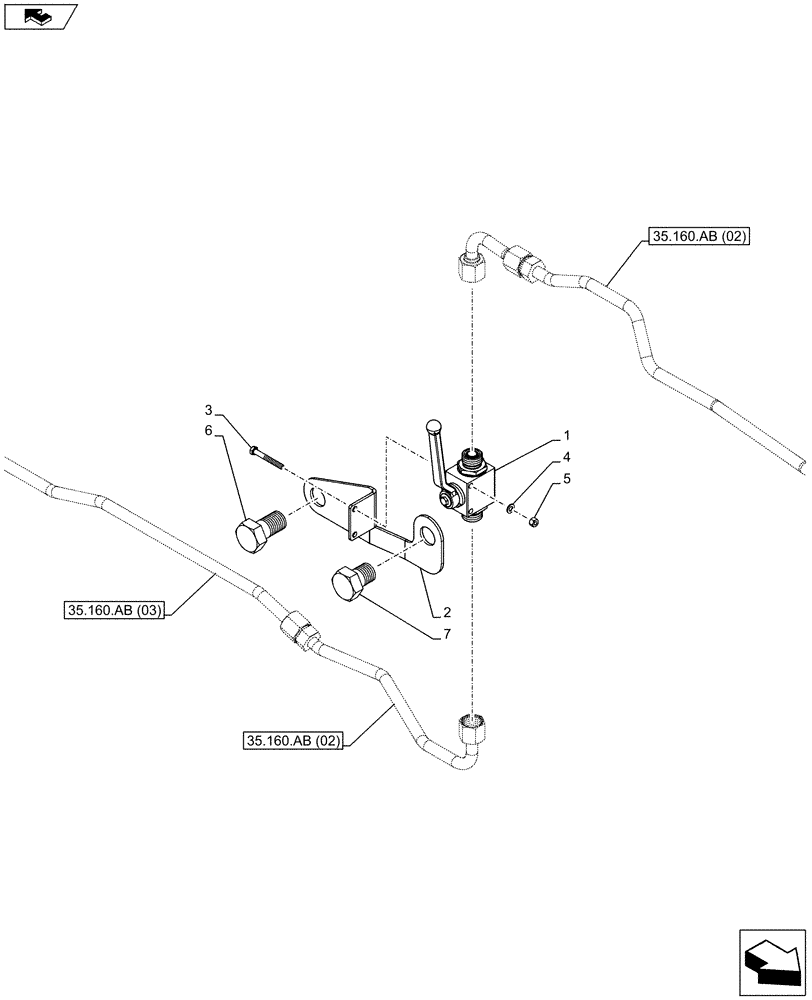

Схема запчастей Case IH FARMALL 95C - (35.160.AT[02]) - VAR - 332789 - 3 POINT HITCH, FRONT, HYDRAULIC VALVE, WITH FRONT PTO (35) - HYDRAULIC SYSTEMS
6
35.160.ab (02)
5
4
7
2
35.160.ab (02)
3
1
home
35.160.ab (03)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84546245

VALVE,13/16" - 16 x 13/16" - 16

1шт.

2

47406586

BRACKET

1шт.

3

86025725

BOLT,Hex, M5 x 40mm, Cl 8.8

M5 x 40 mm

2шт.

4

9824326

WASHER,5.3mm ID x 10mm OD x 1mm Thk

2шт.

5

2977215

NUT,M5 x 0.8, Cl 8

2шт.

6

73172048

BOLT,Hex, M20 x 2.5 x 35mm, Cl 8.8, Full Thd

M20 x 35 mm

1шт.

7

2977292

BOLT,Hex, M20 x 2.0 x 25mm, Cl 8.8

M20 x 35 mm

1шт.
