(35.160.AT[01]) - VAR - 331789 - 3 POINT HITCH, FRONT, HYDRAULIC VALVE, HYDRAULIC BALE TENSION, W/O FRONT PTO

Запчасти Case IH FARMALL 95C (35.160.AT[01]) - VAR - 331789 - 3 POINT HITCH, FRONT, HYDRAULIC VALVE, HYDRAULIC BALE TENSION, W/O FRONT PTO (35) - HYDRAULIC SYSTEMS

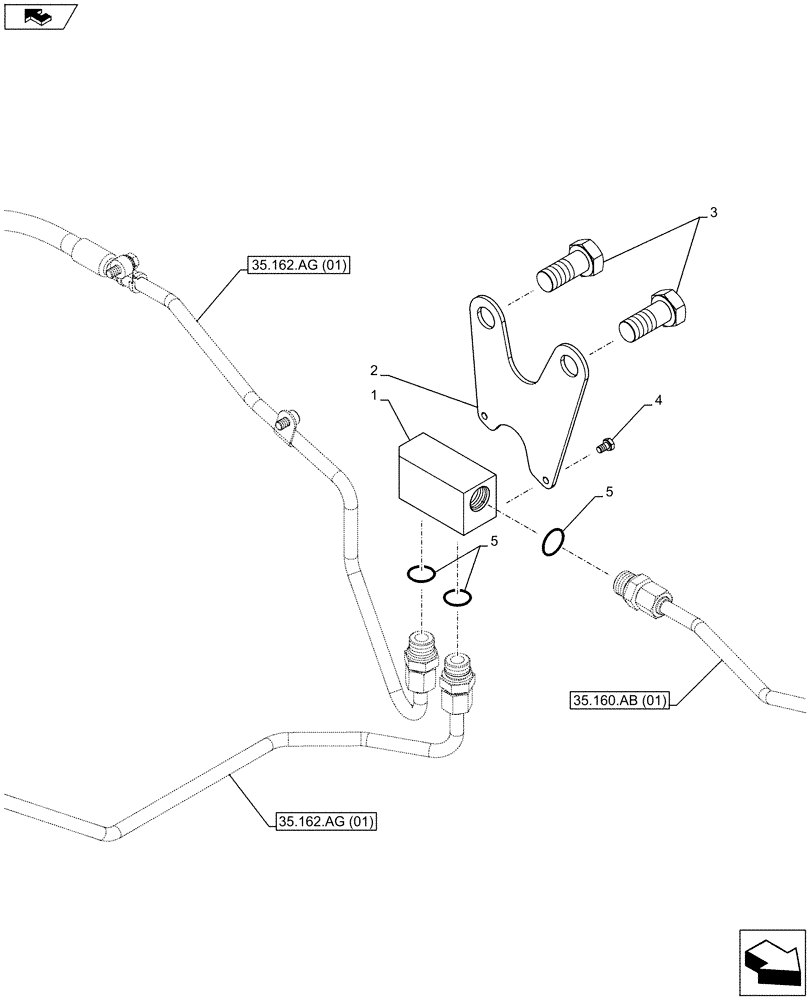

Схема запчастей Case IH FARMALL 95C - (35.160.AT[01]) - VAR - 331789 - 3 POINT HITCH, FRONT, HYDRAULIC VALVE, HYDRAULIC BALE TENSION, W/O FRONT PTO (35) - HYDRAULIC SYSTEMS
35.160.ab (01)
1
3
4
2
35.162.ag (01)
home
35.162.ag (01)
5
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47057148

BLOCK

1шт.

2

84250037

BRACKET

1шт.

3

86508588

BOLT,Hex, M20 x 45mm, Cl 8.8

2шт.

4

378056

BOLT,Hex, M6 x 10mm, Cl 8.8

M6 x 10 mm

2шт.

5

14438085

O-RING,19.3mm ID x 2.4mm

3шт.

Выбрано товаров: 5
