(33.220.AF[01]) - VAR - 743516 - TRAILER BRAKE VALVE, VALVE SECTIONS & QUICK COUPLERS

Запчасти Case IH FARMALL 95C (33.220.AF[01]) - VAR - 743516 - TRAILER BRAKE VALVE, VALVE SECTIONS & QUICK COUPLERS (33) - BRAKES & CONTROLS

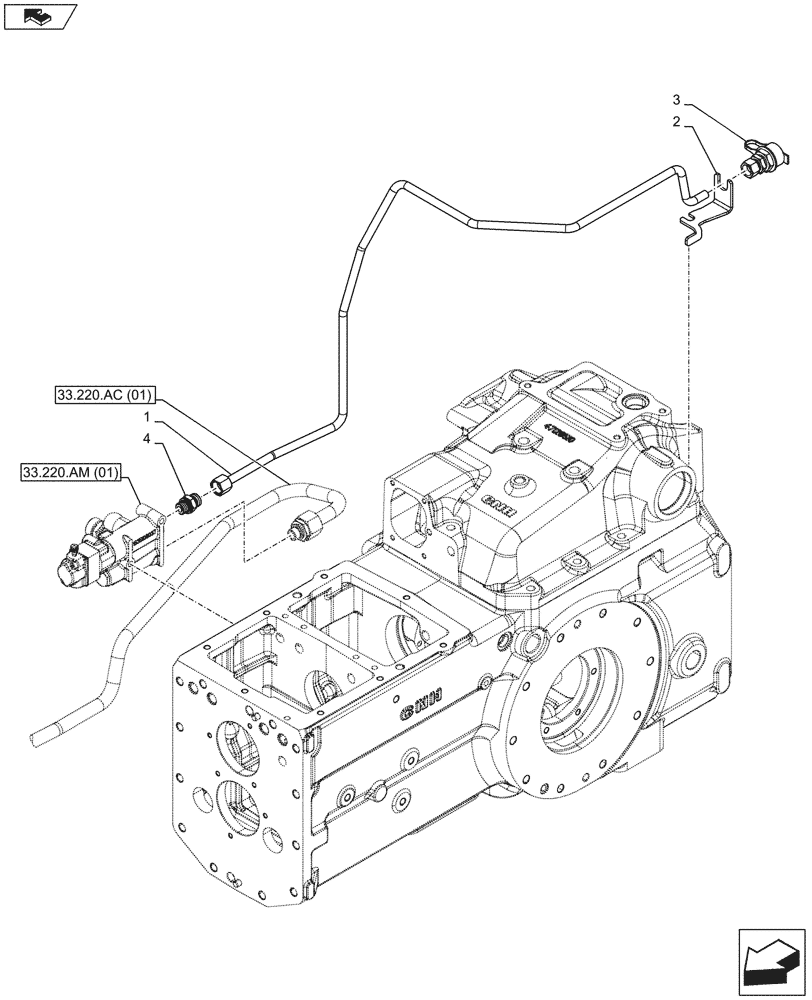

Схема запчастей Case IH FARMALL 95C - (33.220.AF[01]) - VAR - 743516 - TRAILER BRAKE VALVE, VALVE SECTIONS & QUICK COUPLERS (33) - BRAKES & CONTROLS
33.220.am (01)
3
33.220.ac (01)
home
1
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47389646

PIPE

1шт.

2

47393707

BRACKET

1шт.

3

44015354

QUICK MALE COUPLING

1шт.

4

5185561

HYD CONNECTOR,Straight, M18 x 1.5 UN/UNF, 13/16"-16" ORFS

1шт.
