Запчасти Case IH FARMALL 95C (33.204.AG[02]) - VAR - 743561, 338323 - 4WD, FRONT AXLE, W/HYDRAULIC DIFFERENTIAL LOCK AND BRAKE, BRAKE, LINES (33) - BRAKES & CONTROLS

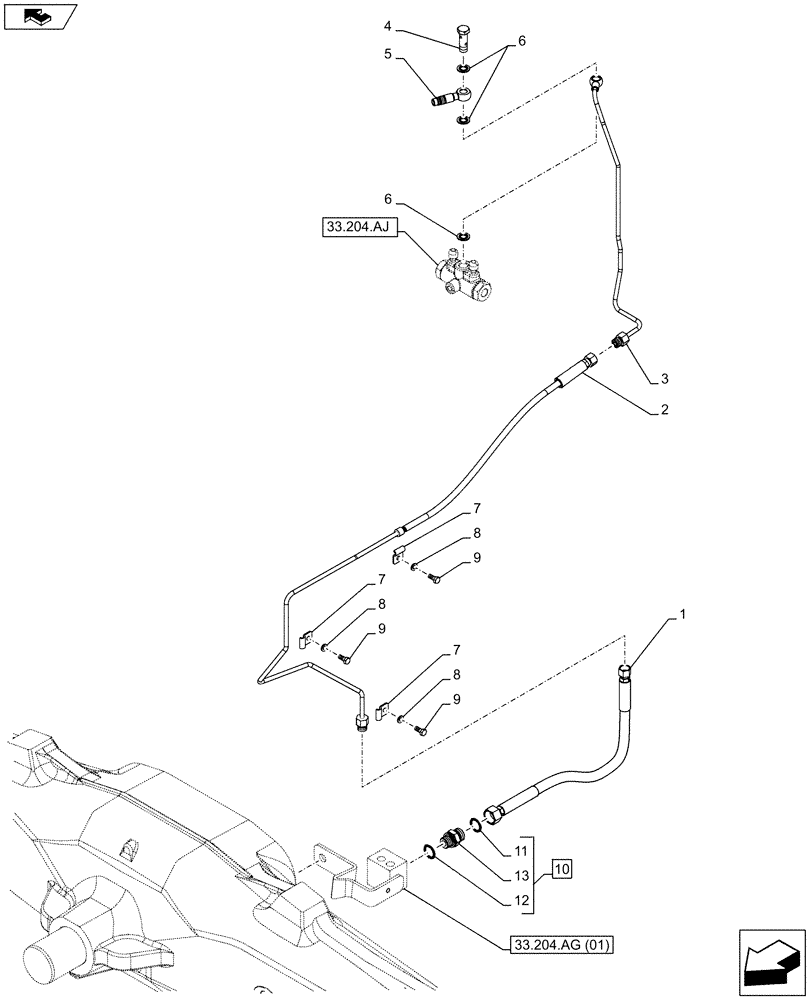

Схема запчастей Case IH FARMALL 95C - (33.204.AG[02]) - VAR - 743561, 338323 - 4WD, FRONT AXLE, W/HYDRAULIC DIFFERENTIAL LOCK AND BRAKE, BRAKE, LINES (33) - BRAKES & CONTROLS
33.204.aj
7
8
2
11
8
3
13
6
9
5
12
9
7
6
7
10
4
home
8
9
1
33.204.ag (01)

Артикул

Название

Примечание

Количество

1

84473801

FLEXIBLE HOSE,4.75mm ID x 520mm L

1шт.

2

84519868

BRAKE LINE

1шт.

3

47422995

TUBE

1шт.

4

87392054

HYD CONNECTOR,M12 x 1 x 42.5mm L

1шт.

5

82030175

BANJO FITTING,M8 x 1 x 53mm

1шт.

6

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

3шт.

7

84474589

BRACKET

3шт.

8

10519404

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

3шт.

9

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

3шт.

10

5185561

HYD CONNECTOR,Straight, M18 x 1.5 UN/UNF, 13/16"-16" ORFS

ASSY, Incl 11 - 13

1шт.

11

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

12

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

13

NSS

NOT SOLD SEPARAT

Hyd. Connector, Incl in 10

1шт.

Выбрано товаров: 13
