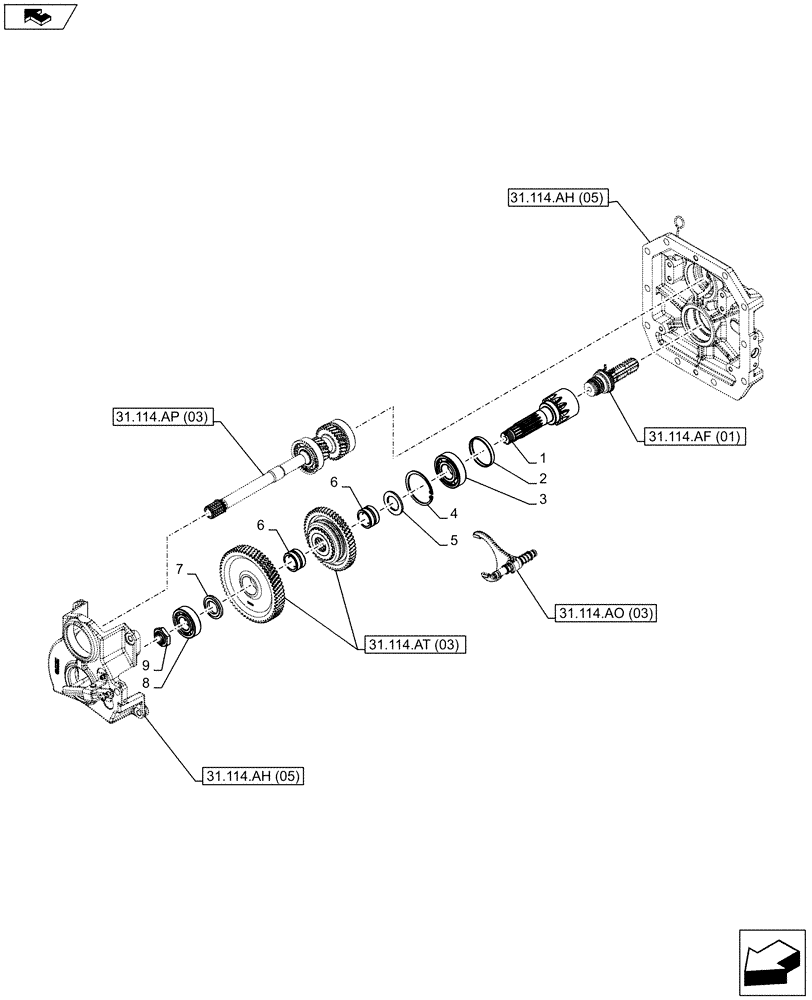

Запчасти Case IH FARMALL 95C (31.114.AB[03]) - VAR - 743594 - PTO 540/1000 RPM, MECHANICAL, DRIVEN SHAFT, W/O CAB - NA (31) - IMPLEMENT POWER TAKE OFF
![Схема запчастей Case IH FARMALL 95C - (31.114.AB[03]) - VAR - 743594 - PTO 540/1000 RPM, MECHANICAL, DRIVEN SHAFT, W/O CAB - NA (31) - IMPLEMENT POWER TAKE OFF](https://partsell.ru/storage/images/caseih/4977986.png)
1
home
14.
1
6
1
3
31.
4
14.ah (05)
(03)
t
a
31.
14.a
7
9
(03)
14.ah (05)
1
31.
1
8
p
6
5
2
31.
1
1
31.
14.ao (03)
14.af (01)
31.
FIT
1:1
100%
№
Артикул
Название
Примечание
Количество
1
5198353
SHAFT
Driven
1шт.
2
5165976
OIL SEAL,60mm ID x 80mm OD x 10mm Thk
1шт.
3
20943310
BALL BEARING,40mm ID x 90mm OD x 23mm W
1шт.
4
11062476
SNAP RING,M90, Int
1шт.
5
5109656
THRUST WASHER,39.25mm ID x 64mm OD x 4mm Thk
1шт.
6
5101537
BUSHING,39.2mm ID x 50mm OD x 29.04mm L
2шт.
7
5162811
THRUST WASHER,35.1mm ID x 62mm OD x 6.5mm Thk
1шт.
8
20045200
BALL BEARING,35mm ID x 80mm OD x 21mm
1шт.
Выбрано товаров: 9
