(27.120.AI[01]) - VAR - 390411 - FINAL DRIVE HOUSING

Запчасти Case IH FARMALL 95C (27.120.AI[01]) - VAR - 390411 - FINAL DRIVE HOUSING (27) - REAR AXLE SYSTEM

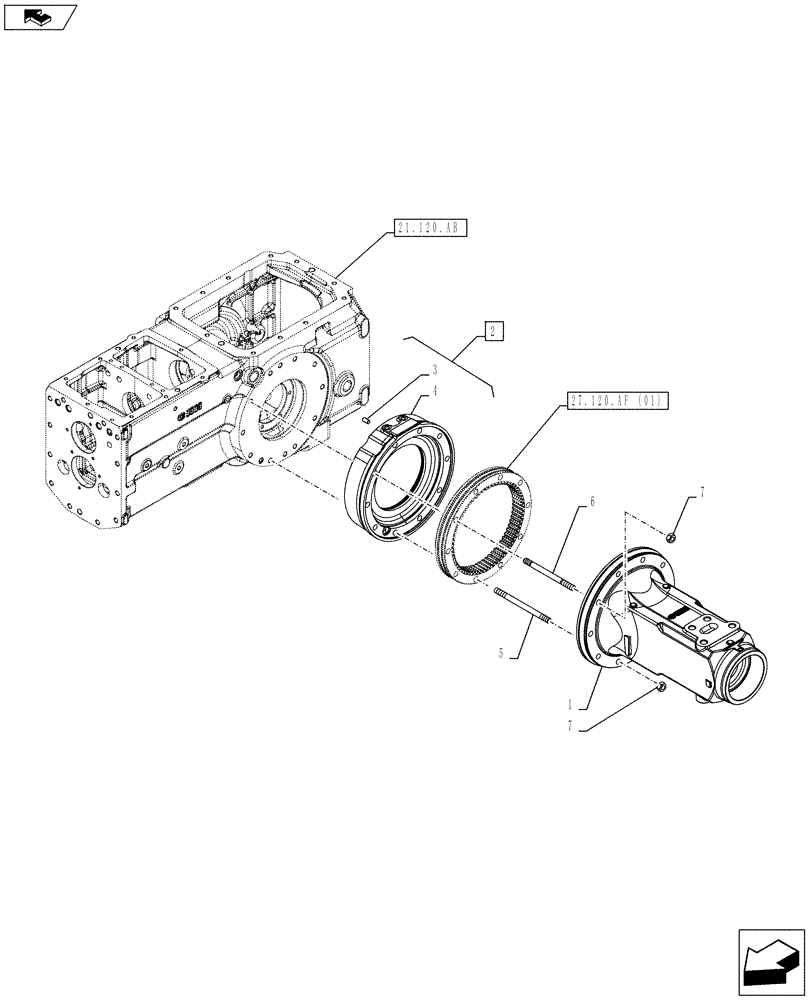

Схема запчастей Case IH FARMALL 95C - (27.120.AI[01]) - VAR - 390411 - FINAL DRIVE HOUSING (27) - REAR AXLE SYSTEM
21.120.ab
1
7
3
home
4
6
5
2
27.120.af (01)
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47383530

REAR AXLE

2шт.

2

5158117

SPACER

ASSY, Incl 3 - 4

2шт.

3

5110094

DOWEL,10mm OD x 19.5mm L

D= 10 x 19.5 mm

3шт.

4

NSS

NOT SOLD SEPARAT

Spacer, Incl in 2

1шт.

5

13558430

STUD,M14 x 1.5 x 20.00mm x 170.00mm, Cl 10.9, PLN

M14 x 1.5 x 28 x 170 mm

4шт.

6

13558130

STUD

10шт.

7

12164024

NUT,Hex, M14 x 1.5mm Pitch, Cl 10, DAC

M14 x 1.5 mm

20шт.

Выбрано товаров: 7
