Запчасти Case IH FARMALL 95C (27.120.AF[02]) - VAR - 390411 - FINAL DRIVE AXLE (27) - REAR AXLE SYSTEM

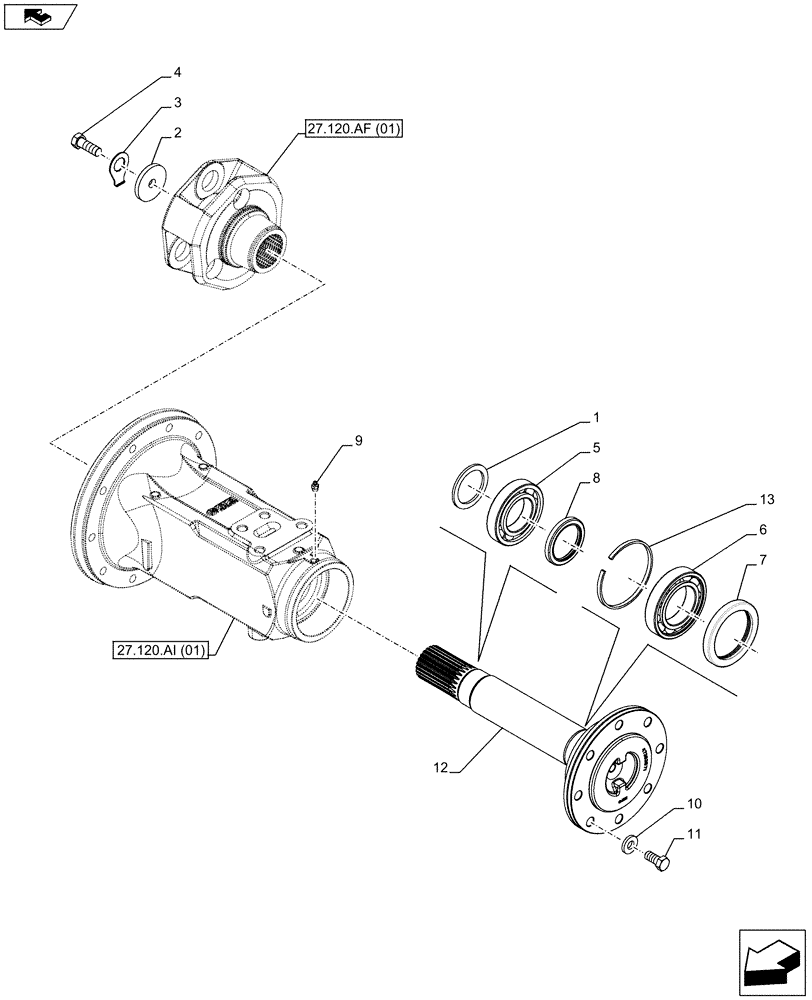

Схема запчастей Case IH FARMALL 95C - (27.120.AF[02]) - VAR - 390411 - FINAL DRIVE AXLE (27) - REAR AXLE SYSTEM
13
6
4
7
8
12
27.120.ai (01)
5
10
1
9
2
11
3
home
27.120.af (01)

Артикул

Название

Примечание

Количество

1

4997186

SHIM,60.2mm ID x 80mm OD x 4.5mm Thk

1шт.

1

4997187

SHIM,60.2mm ID x 80mm OD x 4.6mm Thk

1шт.

1

4997188

SHIM,60.2mm ID x 80mm OD x 4.7mm Thk

1шт.

1

4997189

SHIM,4.8mm Thk

1шт.

1

4997190

SHIM,4.9mm Thk

1шт.

1

4997191

SHIM,60.2mm ID x 80mm OD x 5mm Thk

1шт.

1

4997192

SHIM,5.1mm Thk

1шт.

1

4997193

SHIM,5.2mm Thk

1шт.

1

4997194

SHIM,5.3mm Thk

1шт.

1

4997195

SHIM,60.2mm ID x 80mm OD x 5.4mm Thk

1шт.

1

4997196

SHIM,5.5mm Thk

1шт.

1

4997197

SHIM,5.6mm Thk

1шт.

1

4997198

SHIM,5.7mm Thk

1шт.

1

4997199

SHIM,5.8mm Thk

1шт.

2

4997201

DISC,16.5mm ID x 70mm OD x 80mm Thk

2шт.

3

4997202

LOCKING PLATE,24.1mm ID x 28mm OD x 2mm Thk

2шт.

4

14258031

BOLT,Hex, M16 x 1.5 x 45mm, Cl 10.9, Full Thd

M16 x 1.5 x 45 mm

2шт.

5

20141040

BALL BEARING,60mm ID x 110mm OD x 22mm W

D= 60 x 110 x 22 mm

2шт.

6

20645490

BALL BEARING,75 mm ID x 130 mm OD x 25 mm

2шт.

7

5123205

SEAL,100mm ID x 130mm OD x 16mm Thk

D= 100 x 130 x 16 mm

2шт.

8

47396768

OIL SEAL,59.9mm ID x 78mm OD x 7mm Thk

D= 62 x 78 x 7 mm

2шт.

9

13407211

LUBE NIPPLE,M10 x 1

M10 x 1 x 18 mm

2шт.

10

44011091

WASHER,19mm ID x 40mm OD x 6mm Thk

16шт.

11

11408524

BOLT,Hex, M18 x 1.5 x 40mm, Cl 8.8

M18 x 1.5 x 40 mm

16шт.

12

47383525

AXLE

ASSY

2шт.

13

5123054

SPACER,127mm ID x 131mm OD x 6.5mm L

2шт.

Выбрано товаров: 26
