(27.106.AR[01]) - VAR - 390411 - DIFFERENTIAL GEAR, SUPPORT

Запчасти Case IH FARMALL 95C (27.106.AR[01]) - VAR - 390411 - DIFFERENTIAL GEAR, SUPPORT (27) - REAR AXLE SYSTEM

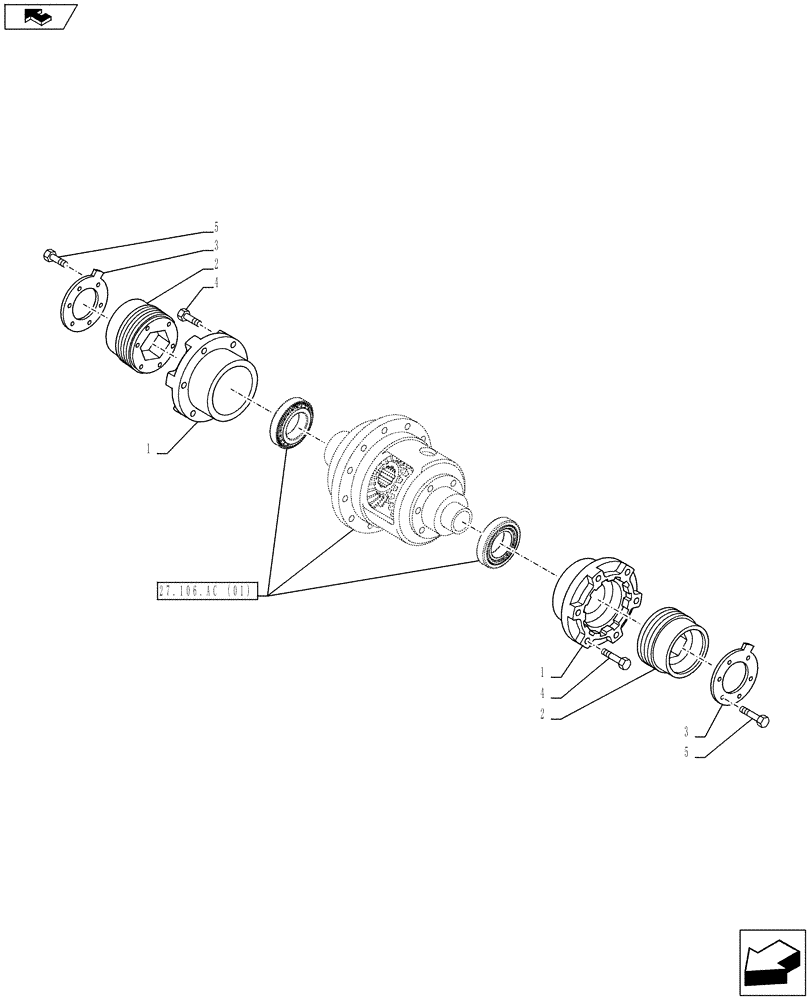

Схема запчастей Case IH FARMALL 95C - (27.106.AR[01]) - VAR - 390411 - DIFFERENTIAL GEAR, SUPPORT (27) - REAR AXLE SYSTEM
5
27.106.ac (01)
1
4
3
2
3
1
5
2
home
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5181163

SUPPORT

2шт.

2

5198104

BEARING LOCK NUT,Hex, M8 x 1.25, Cl 8.8

2шт.

3

5087672

LOCK WASHER,50mm ID x 93mm OD x 4mm Thk

2шт.

4

14233921

SCREW,Hex, M10 x 1.25 x 45mm, Cl 8.8

12шт.

5

14238024

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

Выбрано товаров: 5
