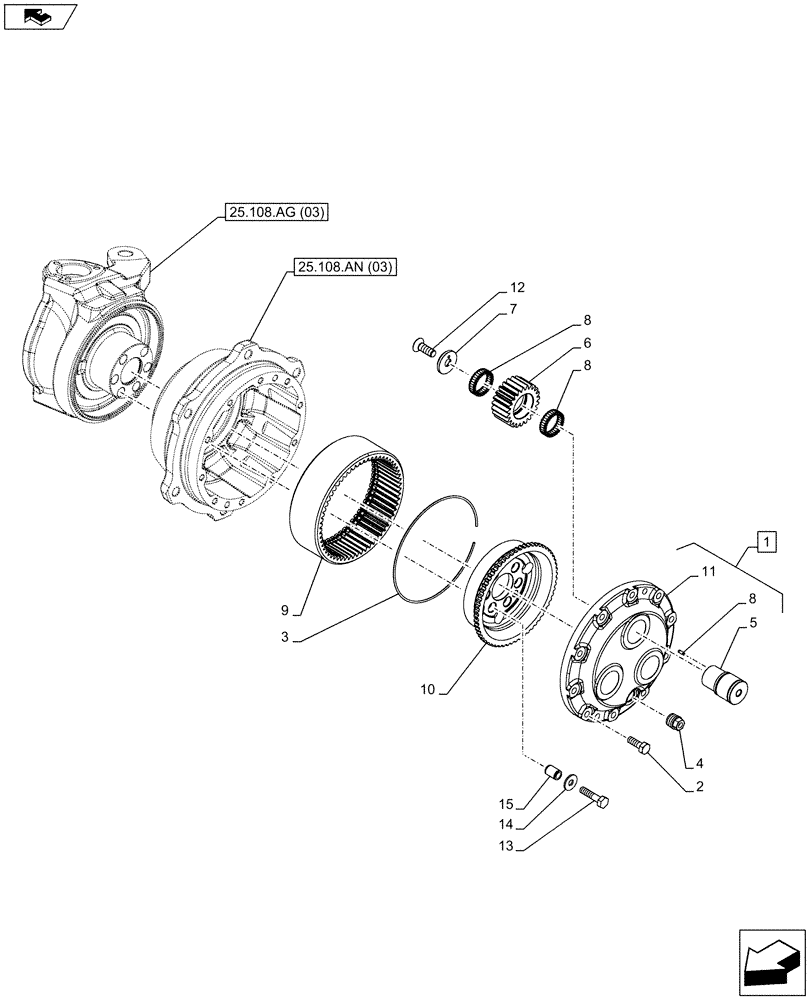

Запчасти Case IH FARMALL 95C (25.108.AB[03]) - VAR - 744581, 337323 - 4WD FRONT AXLE, PLANETARY REDUCER (HEAVY DUTY) (25) - FRONT AXLE SYSTEM

1

84339570

PLANET CARRIER

ASSY, Incl 5 (Qty 3), 8 (Qty 3), 11

2шт.

2

14233834

BOLT,Hex, M10 x 1.25 x 40mm, Cl 10.9

20шт.

3

5165162

SNAP RING,M50, Int

1шт.

4

14326211

PLUG,M22 x 1.50, R50, ZND

2шт.

5

NSS

NOT SOLD SEPARAT

Pin, Incl in 1

6шт.

6

84183888

PLANETARY GEAR,23T

6шт.

7

84183884

THRUST WASHER,13mm ID x 40mm OD x 7mm Thk

6шт.

8

84380206

NEEDLE ROLLER,4mm OD x 12mm L

Per Side

186шт.

9

84328458

RING GEAR,60T

2шт.

10

84339420

SUPPORT

2шт.

11

NSS

NOT SOLD SEPARAT

Carrier, Incl in 1

3шт.

12

84273746

SCREW,FLAT, M12 x 1.75 x 35mm, Cl 12.9

6шт.

13

16323830

BOLT,Hex, M10 x 1.25 x 45mm

12шт.

14

11190679

BELLEVILLE WASHER,M10 Bolt Size x 27mm OD x 2.5mm Thk

12шт.

15

5179292

BUSHING,10.5mm ID x 15.9mm OD x 22.8mm L

12шт.
