Запчасти Case IH FARMALL 95C (25.108.AB[02]) - VAR - 743561 - 4WD FRONT AXLE, PLANETARY REDUCER, W/HYDRAULIC DIFFERENTIAL LOCK AND BRAKE (25) - FRONT AXLE SYSTEM

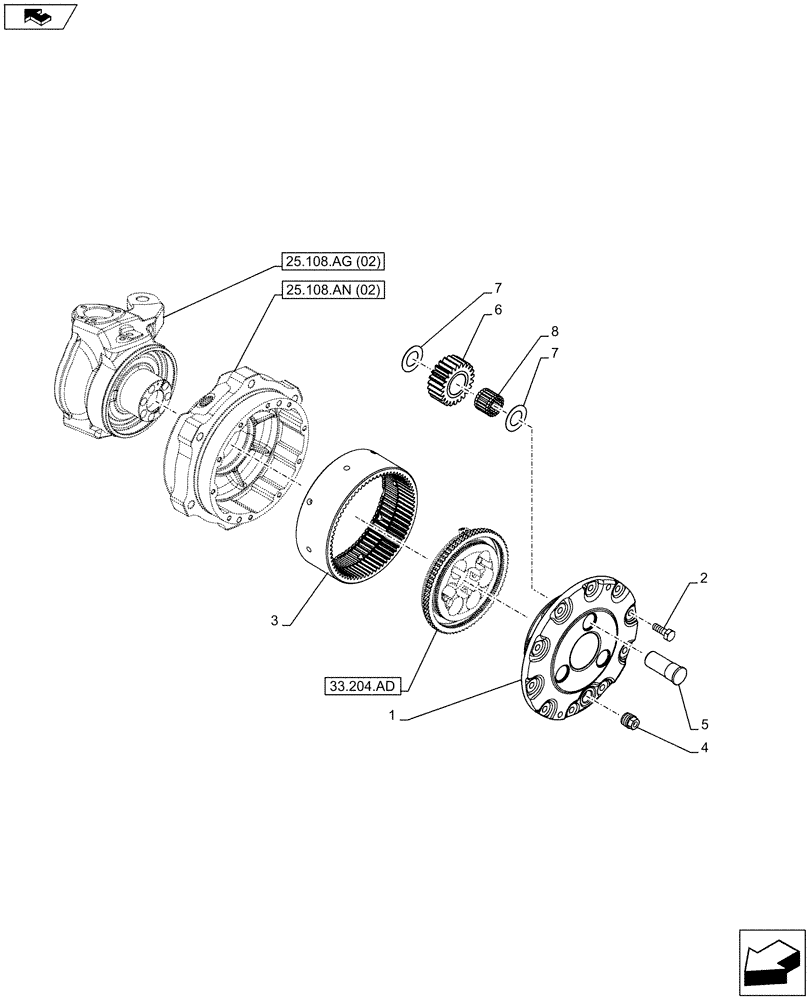

Схема запчастей Case IH FARMALL 95C - (25.108.AB[02]) - VAR - 743561 - 4WD FRONT AXLE, PLANETARY REDUCER, W/HYDRAULIC DIFFERENTIAL LOCK AND BRAKE (25) - FRONT AXLE SYSTEM
25.108.an (02)
7
3
7
33.204.ad
8
1
home
5
2
6
25.108.ag (02)
4

Артикул

Название

Примечание

Количество

1

5181049

SUPPORT

2шт.

2

14233634

LOCK BOLT,Hex, M10 x 1.25 x 30mm, Cl 10.9, Full Thd

20шт.

3

5178603

RING GEAR,171.5mm ID x 199.5mm OD x 84.5mm Thk, 23/60T

2шт.

4

14326211

PLUG,M22 x 1.50, R50, ZND

2шт.

5

5181050

PIN,27mm OD x 63.5mm L

6шт.

6

5169137

GEAR,23T

6шт.

7

4997510

THRUST WASHER,25.7mm ID x 45mm OD x 0.8mm Thk

12шт.

8

87565312

NEEDLE BEARING,25.6mm ID x 35.6mm OD x 29.8mm W

6шт.

Выбрано товаров: 8
