(25.102.AT[03]) - VAR - 743560, 337323, 743561, 338323, 743583 - DIFFERENTIAL LOCK, FRONT, HYDR LINES - ISO

Запчасти Case IH FARMALL 95C (25.102.AT[03]) - VAR - 743560, 337323, 743561, 338323, 743583 - DIFFERENTIAL LOCK, FRONT, HYDR LINES - ISO (25) - FRONT AXLE SYSTEM

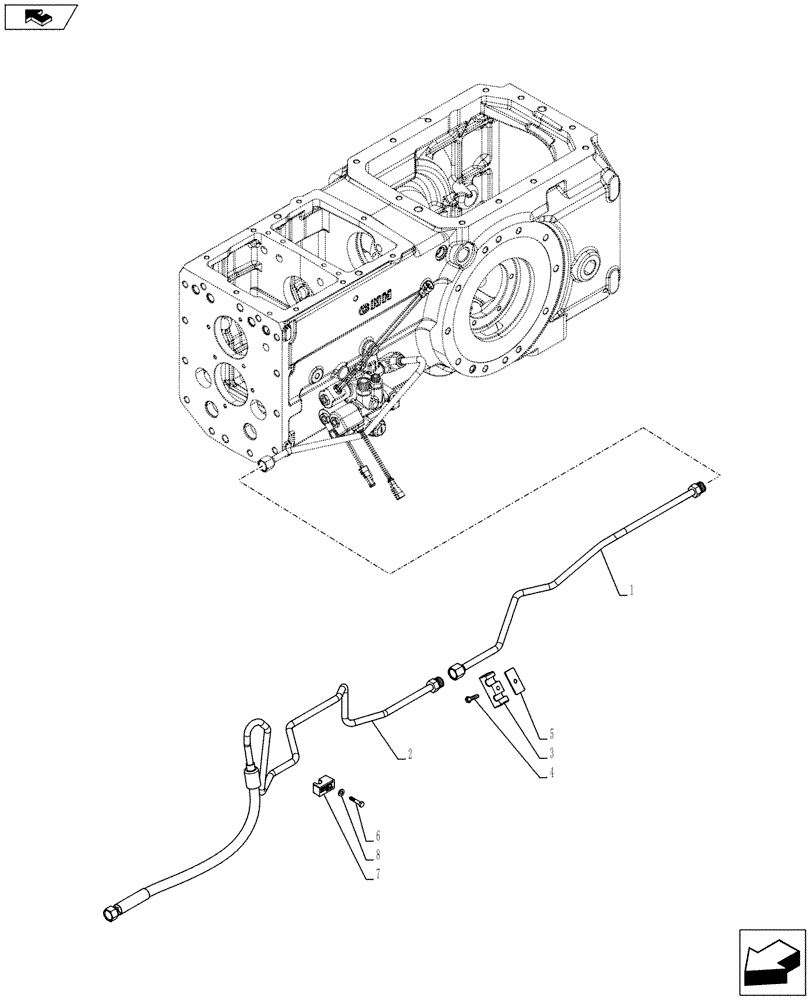

Схема запчастей Case IH FARMALL 95C - (25.102.AT[03]) - VAR - 743560, 337323, 743561, 338323, 743583 - DIFFERENTIAL LOCK, FRONT, HYDR LINES - ISO (25) - FRONT AXLE SYSTEM
5
6
2
3
home
7
4
1
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84553848

TUBE

Front Diff-Lock

1шт.

2

47393722

HYDRAULIC HOSE

Front Diff-Lock

1шт.

3

87694267

BLOCK

1шт.

4

16050621

SCREW,Hex, M6 x 30mm, Cl 8.8, Full Thd

1шт.

5

84554068

BRACKET

1шт.

6

10903221

SCREW,Hex, M6 x 40mm, Cl 8.8

1шт.

7

87532290

BRACKET

1шт.

8

12639701

WASHER,6.15mm ID x 11mm OD x 1mm Thk

1шт.

Выбрано товаров: 8
