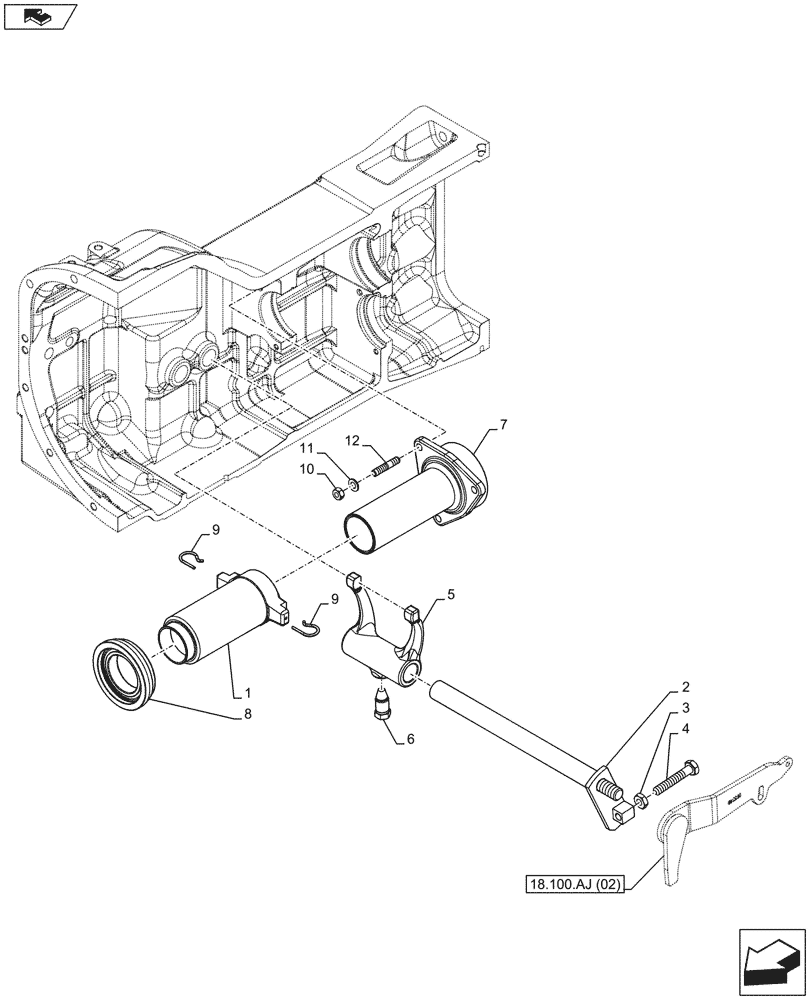

Запчасти Case IH FARMALL 95C (18.100.AF[02]) - VAR - 743565, 743594, 743768 - CLUTCH MECHANISM, FORK, W/ CAB (18) - CLUTCH

1

87541562

THRUST BEARING,50 mm ID x 90.5 mm OD x 22 mm

1шт.

2

84326194

CONTROL LEVER

1шт.

3

10791021

THIN NUT,Thin, M10 x 1.25, Cl 05

1шт.

4

15231624

BOLT,Hex, M10 x 1.25 x 60mm, Cl 8.8, Full Thd

1шт.

5

5168938

FORK

1шт.

6

4968813

BOLT,Hex, M16 x 1.5 x 32mm

1шт.

7

5167184

COVER

1шт.

8

87541562

THRUST BEARING,50 mm ID x 90.5 mm OD x 22 mm

1шт.

9

44011615

SPRING,15mm, Free Length

2шт.

10

16100814

NUT,M8, Cl 8, DAC

3шт.

11

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

3шт.

12

13517210

STUD

3шт.
