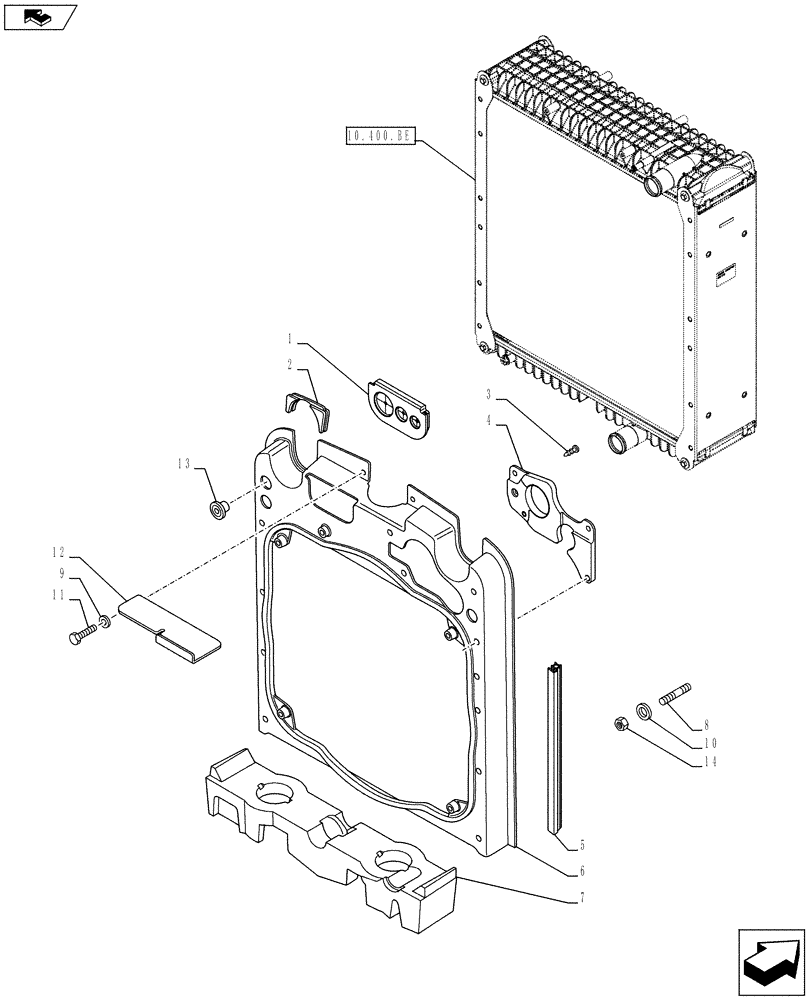

Запчасти Case IH FARMALL 95C (10.400.BF[08]) - VAR - 743519, 743594, 743566, 743565 - RADIATOR FAN SHROUD, SUPPORT, WAD, W/O CAB (10) - ENGINE

1

87564654

PAD

1шт.

2

87572271

PAD

2шт.

3

14591987

BUTTON,8mm OD x 12mm L, Black

2шт.

4

87561348

PAD

1шт.

5

87563298

SEAL

1шт.

6

87537522

SEALING ELEMENT

1шт.

7

87559597

SEALING ELEMENT

1шт.

8

13517124

STUD,M8 x 12mm x 28mm, Cl 8.8

M8 x 12 x 28 mm

1шт.

9

11193274

BELLEVILLE WASHER,M6 Bolt Size x 15mm OD x 1.2mm Thk

2шт.

10

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

1шт.

11

13276114

SCREW,Pozidriv Pan Hd, M6 x 14mm

2шт.

12

87563744

GUARD

1шт.

13

10403680

INSULATING RING,28mm ID x 46mm OD x 11mm Thk

1шт.

14

16100814

NUT,M8, Cl 8, DAC

1шт.
