Запчасти Case IH FARMALL 95C (82.100.AF[01]) - VAR - 333489, 335489, 336730, 336732 - LOADER ARM, ARM/LIFTING DEVICE (82) - FRONT LOADER & BUCKET

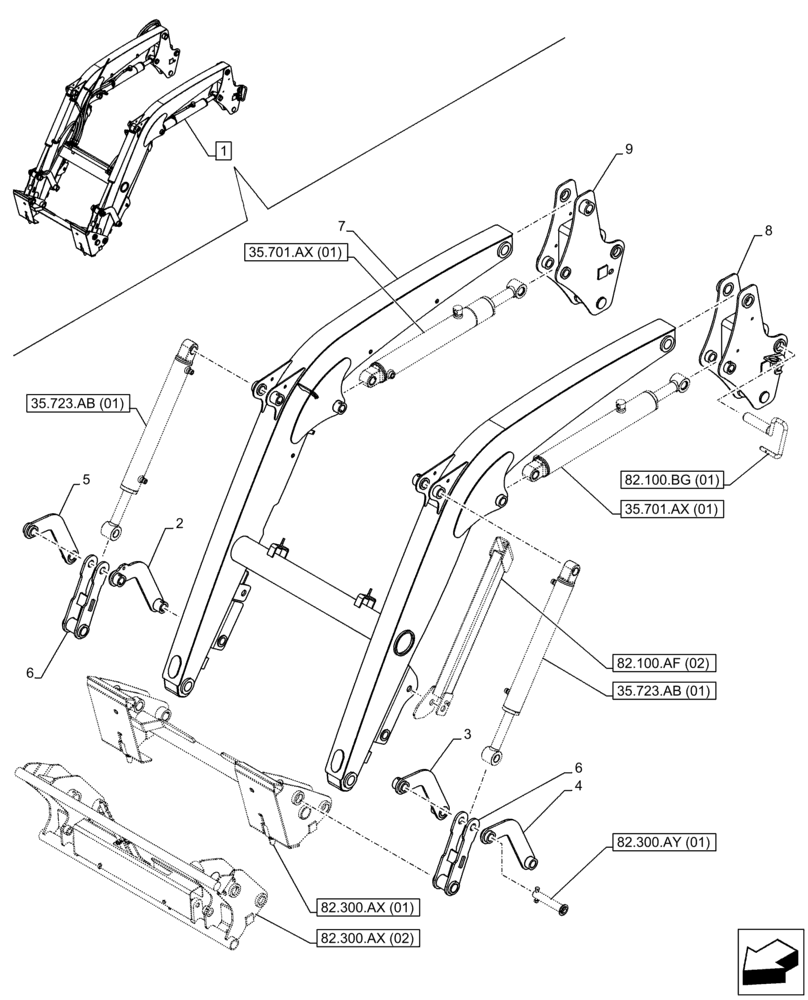

Схема запчастей Case IH FARMALL 95C - (82.100.AF[01]) - VAR - 333489, 335489, 336730, 336732 - LOADER ARM, ARM/LIFTING DEVICE (82) - FRONT LOADER & BUCKET
35.723.ab (01)
6
6
82.100.bg (01)
5
2
82.300.ax (01)
35.701.ax (01)
8
82.300.ax (02)
4
35.701.ax (01)
35.723.ab (01)
82.100.af (02)
9
3
7
1
82.300.ay (01)

Артикул

Название

Примечание

Количество

1

84321724

LOADER

ASSY

1шт.

Front Loader (LIGHT) with 4 couplers - SSL Tool Attach., Var. 333489, 335489, 336730

1шт.

1

47556494

LOADER

ASSY

1шт.

Front Loader (LIGHT) with 4 couplers - EU Tool Attach., Var. 336732

1шт.

2

84393710

LEVER

RH, Inner

1шт.

3

84393715

LEVER

LH, Inner

1шт.

4

84393699

LEVER

LH, Outer

1шт.

5

84393693

LEVER

RH, Outer

1шт.

6

84393751

ROD

2шт.

7

84421888

ARM

1шт.

8

84393652

SUPPORT

LH

1шт.

9

84393650

SUPPORT

RH

1шт.

Выбрано товаров: 12
