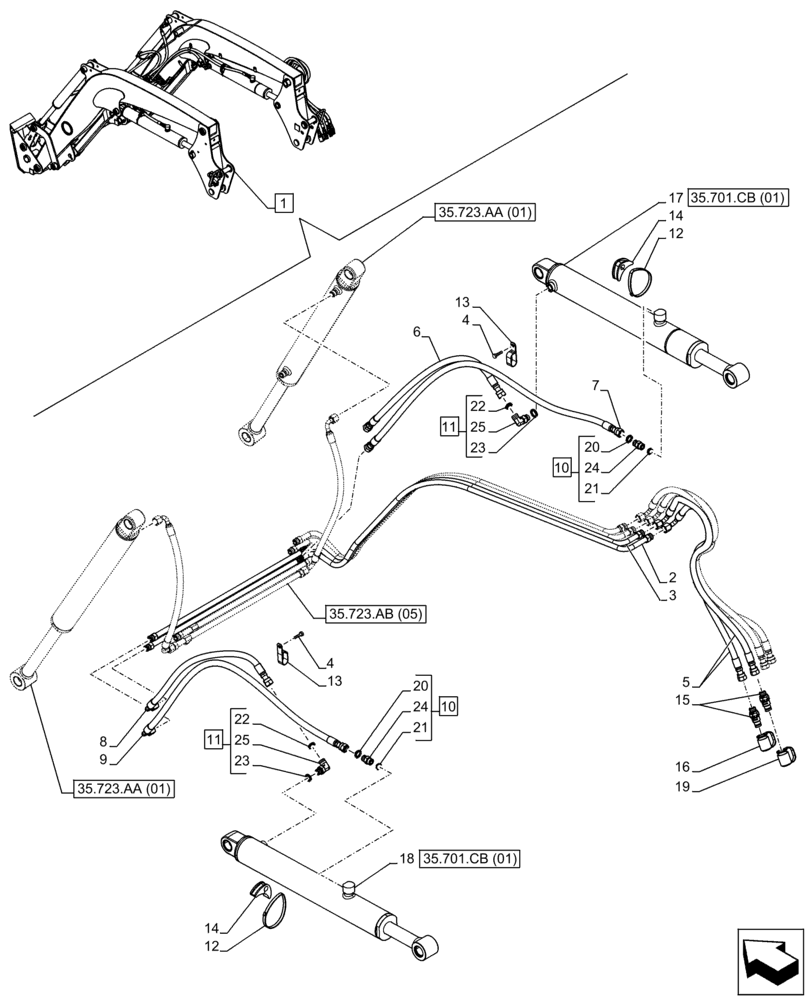

Запчасти Case IH FARMALL 95C (35.701.AX[02]) - VAR - 336731, 336733 - LOADER ARM, BOOM CYLINDER LINES (35) - HYDRAULIC SYSTEMS

1

47592515

LOADER

ASSY, Incl 2 - 25

1шт.

Front Loader (LIGHT) with 4 couplers, with Diverter - SSL Tool Attach., Var. 336731

1шт.

1

47592511

LOADER

ASSY, Incl 2 - 25

1шт.

Front Loader (LIGHT) with 4 couplers, with Diverter - EU Tool Attach., Var. 336733

1шт.

2

84406384

RIGID TUBE

Front Loader Cylinder

1шт.

3

84406386

RIGID TUBE

Front Loader Cylinder

1шт.

4

16043621

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

5

84406192

FLEXIBLE HOSE,1250mm L

Front Loader

2шт.

6

84406389

FLEXIBLE HOSE

Front Loader Cylinder, RH, Head side

1шт.

7

84406390

FLEXIBLE HOSE

Front Loader Cylinder, RH, Rod side

1шт.

8

84406391

FLEXIBLE HOSE

Front Loader Cylinder, LH, Head side

1шт.

9

84406392

FLEXIBLE HOSE

Front Loader Cylinder, LH, Rod side

1шт.

10

83963374

FITTING,13/16"-16 ORFS x 3/4"-16 ORB

ASSY, Incl 20, 21, 24

2шт.

11

83971549

90 ELBOW,13/16"-16 ORFS x 3/4"-16 ORB

ASSY, Incl 22, 23, 25

2шт.

12

84406396

FIXING STRIP

2шт.

13

5145401

CLAMP

2шт.

14

85805567

BLOCK

2шт.

15

84406394

FITTING

2шт.

16

84406395

PLASTIC PLUG

Yellow

1шт.

17

84406290

LIFT CYLINDER

RH

1шт.

18

84406289

LIFT CYLINDER

LH

1шт.

19

84406403

PLASTIC PLUG

Green

1шт.

20

81845030

NUT

2шт.

21

81832258

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

22

89992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

23

80128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

24

NSS

NOT SOLD SEPARAT

Fitting, Incl in 10

2шт.

25

NSS

NOT SOLD SEPARAT

90 Elbow, Incl in 11

2шт.
