Запчасти Case IH FARMALL 95C (35.204.BE[06]) - VAR - 336108, 743569 - REMOTE CONTROL VALVE, DISTRIBUTOR, COMPONENTS (35) - HYDRAULIC SYSTEMS

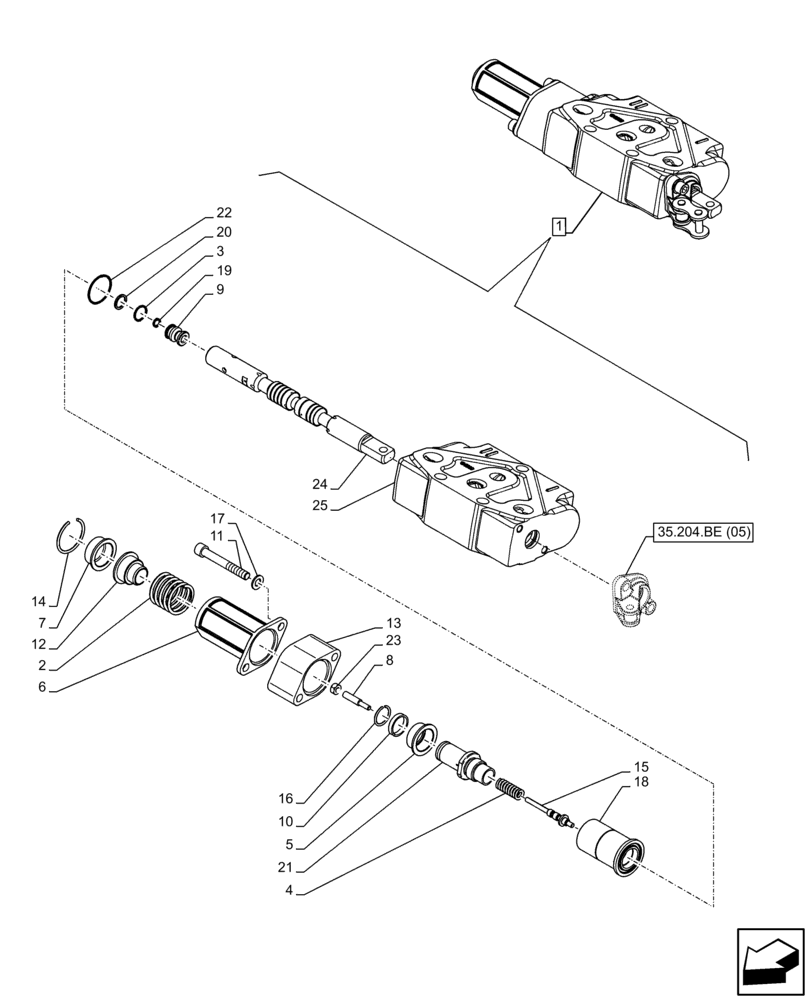

Схема запчастей Case IH FARMALL 95C - (35.204.BE[06]) - VAR - 336108, 743569 - REMOTE CONTROL VALVE, DISTRIBUTOR, COMPONENTS (35) - HYDRAULIC SYSTEMS
11
15
4
35.204.be (05)
10
6
18
5
1
2
24
9
16
3
14
13
17
7
22
8
20
25
21
19
12
23

Артикул

Название

Примечание

Количество

1

84285895

DISTRIBUTOR

ASSY, Incl 2 - 25

1шт.

2

5116893

SPRING,Compression, 27mm OD x 43mm L

1шт.

3

575094

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

1шт.

4

5163369

SPRING,Compression, 9mm OD x 38mm L

1шт.

5

5143564

SPRING CUP,19mm ID x 27mm OD x 10.4mm L

1шт.

6

5143566

FLANGE COVER CAP,28.8mm ID x 32mm OD x 60mm L

1шт.

7

5143567

COVER

1шт.

8

5163362

ADJUSTMENT SCREW,Hdls Hex Skt, M3.5 x 10mm

1шт.

9

5163363

BUSHING,5.5mm ID x 12mm OD x 16mm L

1шт.

10

5143576

SPACER,13mm ID x 18.5mm OD x 5mm L

1шт.

11

5143621

HEX SOC SCREW,6.35mm OD x 48.5mm L

2шт.

12

5143575

CUP,13mm ID x 21.5mm OD x 18mm Thk

1шт.

13

5143578

SPACER,28mm ID x 32mm OD x 29.5mm L

1шт.

14

13421276

SNAP RING,M28, Int

1шт.

15

5143557

PIN,5.5mm OD x 52.5mm L

1шт.

16

5143577

SNAP RING,11.2mm D x 1.6mm Thk

M28

1шт.

17

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

18

5179066

BUSHING,16mm ID x 27mm OD x 47mm L

1шт.

19

5143558

O-RING,1.78mm Thk x 2.54mm ID

2.57 ID x 1.78mm

1шт.

20

5143560

RING,9.91mm ID x 12.61mm OD x 1.2mm Thk

1шт.

21

5163365

PLUG,M14 x 1.5

1шт.

22

5135736

O-RING,1.78mm Thk x 20.35mm ID, 80 Duro

1шт.

23

15896421

NUT,M5, Cl 10

1шт.

24

NSS

NOT SOLD SEPARAT

Spool, Incl in 1

1шт.

25

NSS

NOT SOLD SEPARAT

Housing, Incl in 1

1шт.

Выбрано товаров: 25
