Запчасти Case IH FARMALL 95C (1.15.1/01) - VERTICAL EXHAUST W/GUARD SHIELD - GUARD (VAR.330134) (02) - ENGINE EQUIPMENT

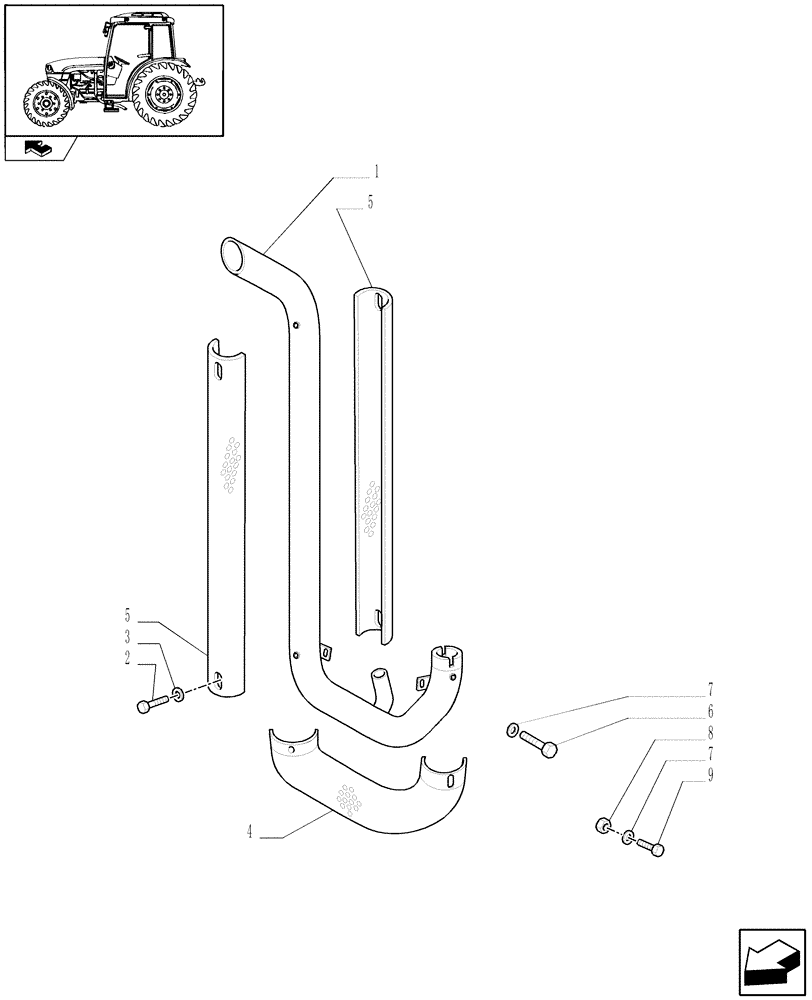

Схема запчастей Case IH FARMALL 95C - (1.15.1/01) - VERTICAL EXHAUST W/GUARD SHIELD - GUARD (VAR.330134) (02) - ENGINE EQUIPMENT
7
7
6
1
home
8
3
9
2
5
4
5

Артикул

Название

Примечание

Количество

1

47136057

EXHAUST SYSTEM PIPE

Incl. 2, 5

1шт.

2

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

5шт.

3

14496404

WASHER,M6 x 12 x 2 Thk

5шт.

4

47135952

GUARD

1шт.

5

47133695

GUARD

2шт.

6

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

6

16043824

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd, DAC

2шт.

7

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

5шт.

8

16100814

NUT,M8, Cl 8, DAC

1шт.

9

16043524

SCREW,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

1шт.

Выбрано товаров: 10
