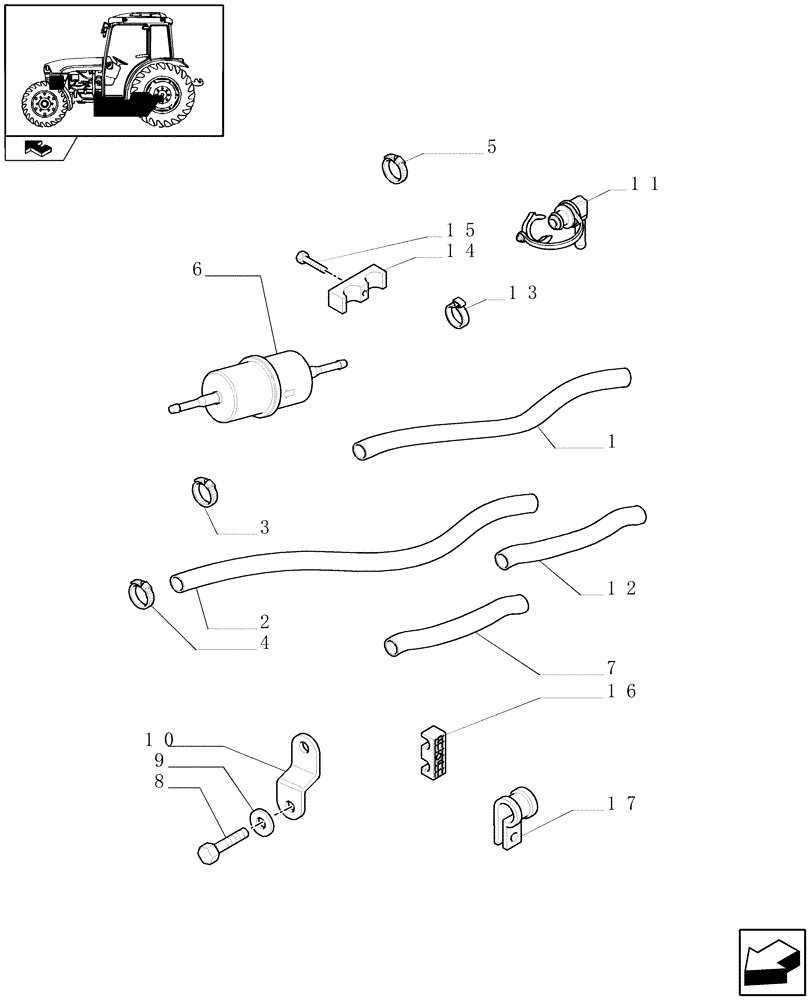

Запчасти Case IH FARMALL 95C (1.14.6) - FUEL PIPES (02) - ENGINE EQUIPMENT

1

19053382

HOSE,10.00 mm

10x15, 1700MM

1шт.

2

82849374

HOSE,7mm ID x 1700mm L

1шт.

3

13000290

HOSE CLAMP,12mm - 18mm, Worm Gear

D=12-18

2шт.

4

10186590

CLAMP,11mm - 13mm

6шт.

5

14560287

CABLE TIE,207.00mm L

COLLAR

3шт.

6

87329736

FUEL FILTER

Inline

1шт.

7

87341201

PLASTIC-RUBBER TUBE,26 mm ID x 1050 mm L

Fuel Tube, 1050MM

1шт.

8

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

, Serial Range: -C6080

1шт.

9

11193274

BELLEVILLE WASHER,M6 Bolt Size x 15mm OD x 1.2mm Thk

, Serial Range: -C6080

1шт.

10

5189615

BRACKET

, Serial Range: -C6080

2шт.

11

47133074

90 ELBOW

2шт.

12

87535208

HOSE,7mm ID x 12mm OD x 5000mm L

5000mm Lenght, 7mm ID, 12mm OD

1шт.

Fuel Tank Fire Tested for Japan, VAR.330136

1шт.

13

10186890

HOSE CLAMP,M14-16, Worm

3шт.

Fuel Tank Fire Tested for Japan, VAR.330136

1шт.

14

87325889

BRACKET

, Serial Range: D6080-C6354

2шт.

14

87571442

BRACKET

, Start Serial: D6354

2шт.

15

86511839

BOLT,Hvy Hex, M6 x 30mm, Cl 8.8

, Serial Range: D6080-C6354

2шт.

15

87015931

BOLT,Hvy Hex, M6 x 35mm, Cl 8.8

, Start Serial: D6354

2шт.

16

87745377

BRACKET

, Start Serial: D6080

2шт.

Fuel Tank Fire Tested for Japan, VAR.330136

1шт.

17

5145401

CLAMP

1шт.
