Запчасти Case IH FARMALL 95C (0.88.0/01[04]) - AIR CONDITIONING WITH FAST FAN FOR FRONT HPL - FILTER AND PIPES (VAR.332638-333638) - C7031 (01) - ENGINE

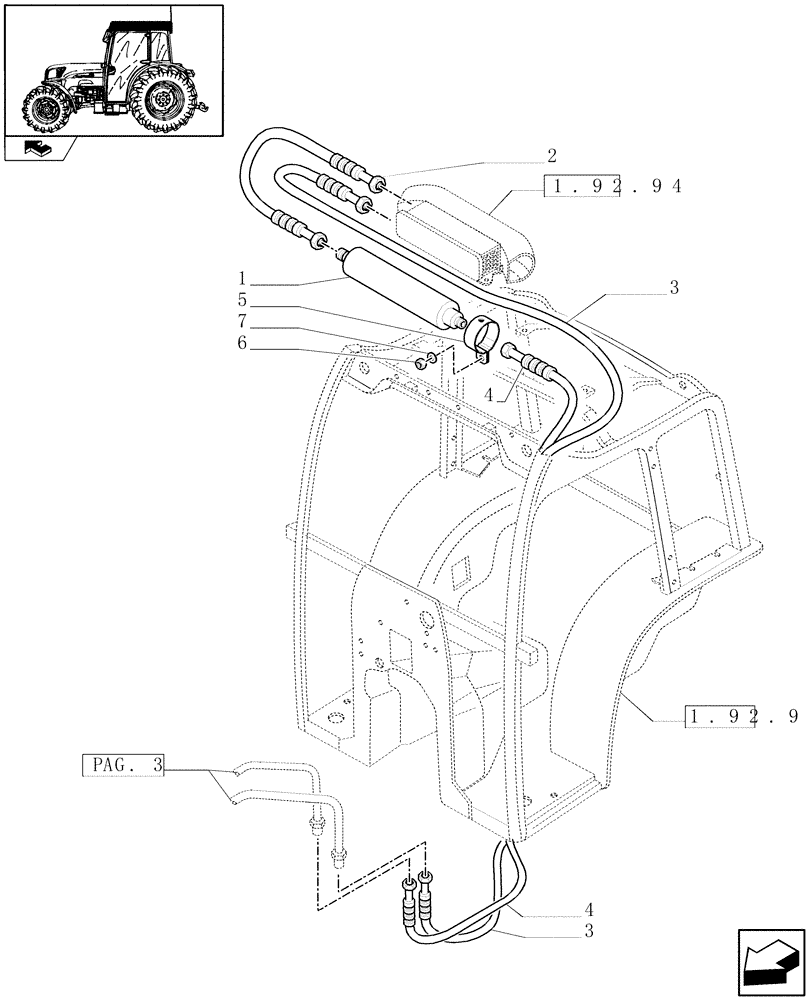

Схема запчастей Case IH FARMALL 95C - (0.88.0/01[04]) - AIR CONDITIONING WITH FAST FAN FOR FRONT HPL - FILTER AND PIPES (VAR.332638-333638) - C7031 (01) - ENGINE
3
p
g
.
a
home
6
1
3
4
3
1.92.94
1.92.90
4
7
5
2

Артикул

Название

Примечание

Количество

1

87661357

FILTER

1шт.

2

87665013

A/C HOSE,7.93 mm ID x 428.60 mm

1шт.

From Dryer Filter to Evaporator

1шт.

3

87666198

HOSE ASSY.

L=2909

1шт.

4

87666338

FLEXIBLE HOSE

L= 2393 mm

1шт.

From Condenser to Dryer Filter

1шт.

5

87652684

BRACKET

2шт.

6

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

2шт.

7

14496507

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

Выбрано товаров: 9
