Запчасти Case IH FARMALL 95C (0.88.0/01[01]) - AIR CONDITIONING WITH FAST FAN FOR FRONT HPL - BELTS AND COMPRESSOR (VAR.332638-333638) (01) - ENGINE

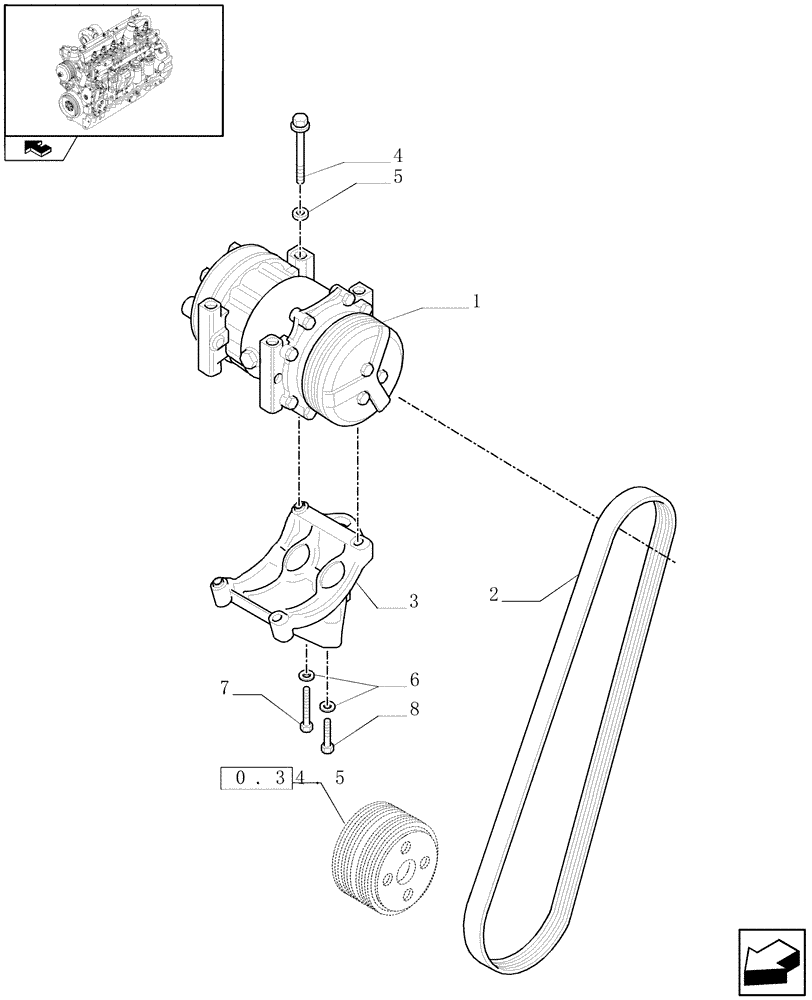

Схема запчастей Case IH FARMALL 95C - (0.88.0/01[01]) - AIR CONDITIONING WITH FAST FAN FOR FRONT HPL - BELTS AND COMPRESSOR (VAR.332638-333638) (01) - ENGINE
2
home
1
6
7
5
0.34.5
8
3
4

Артикул

Название

Примечание

Количество

1

87519620

AIRCOND. COMPRESSOR

1шт.

1

87519620R

REMAN-A/C COMPRESSOR

Remanufactured Air Compressor

1шт.

1

87519620C

CORE-COMPRESSOR

Return Number, AIR COMPRESSOR

1шт.

2

87399981

BELT

1шт.

4

16046134

BOLT,Hex, M8 x 1.25 x 100mm, Cl 10.9

4шт.

5

11197874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 2.2mm Thk

4шт.

6

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

3шт.

7

16045421

BOLT,Hex, M8 x 110mm, Cl 8.8

1шт.

8

15213724

BOLT,Hex, M8 x 60mm, Cl 8.8, Full Thd

2шт.

Выбрано товаров: 9
